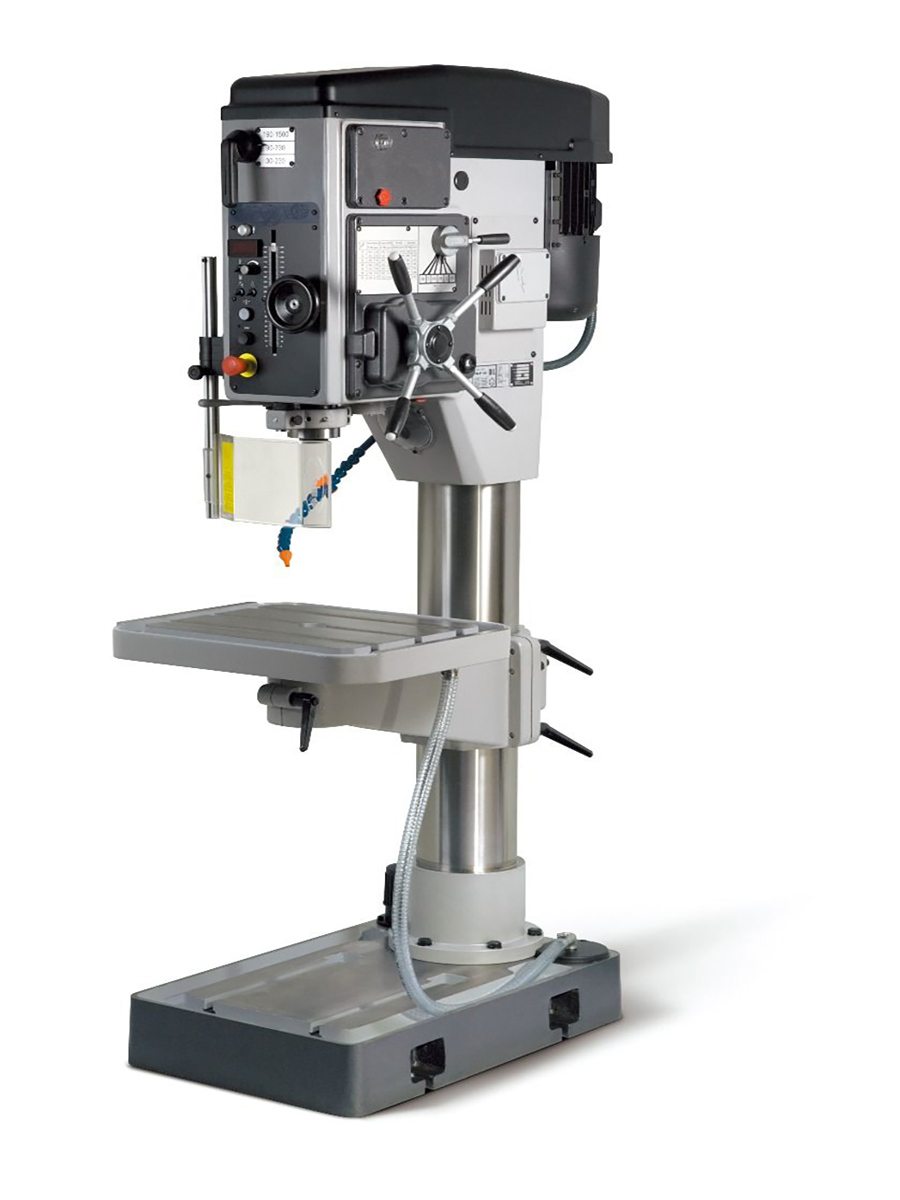

BC40VE – Clausing Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table
Features and Benefits:
Clausing IberDrill Belt Drive with 3 Speed Geared Head Drill Press with state or the art technology, allows you to select the best rpm for the tool with step speed shift levers. Electronic inverter variable speed and 3 gear ranges allow for 36 – 2280 rpm. Combined with 4 Hp spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream.
Electromagnetic clutch quill feed, with capacity production rated 1.57” in steel 1.97” in cast iron, automatic tapping feature by setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Floor Drill W/Adjustable Table |
| Drive Type | Belt Head Drive Mechanical Variable Speed |
| Number of Speed Steps | 3 |
| Spindle Speeds Range 1 (RPM) | 36 – 360 |
| Spindle Speeds Range 2 (RPM) | 108 – 1080 |
| Spindle Speeds Range 3 (RPM) | 228 – 2280 |
| Column to Spindle Center (in) | 14.17 |
| Spindle Nose | 4MT |
| Spindle Travel (in) | 7.87 |
| Quill Feed | Electromagnetic Clutch |
| 4 Feed Ranges (in/rev) | 0.0039, 0.0079, 0.0118, 0.0157 |
| Spindle to Work Surface Min/Max. (in) | 1.97 / 27.16 |
| Column Diameter (in) | 6.89 |
| Adjustable Table Surface (in) | 21.65 x 21.65 |
| Work Table T-Slots (in) | 1/2 |
| Base Size (in) | 31.9 x 26.3 |
| Drill Capacity with Manual Feed (in) | 1.57 |
| E-Stop Switch | Yes |
| Voltage | 230 or 460 |
| Phase | Three |
| Motor Horsepower | 4 |
| Machine Weight (lbs.) | 1,455 |
| Machine Dimensions (WxDxH in) | 26 x 40 x 81.9 |
| Shipping Weight (lbs.) | 1,653 |
| Shipping Dimensions ships laying down (LxWxD in) | 91 x 28 x 48 |
Machine Features:
- Electronic inverter variable speed belt drive
- LED Speed Display
- 3 Speed Gear head with shift lever on the face of the drill
- Gear box lubrication by automatic pump
- Hardened and Ground high quality steel gears
- 4 Hp spindle motor
- Built in low voltage electrical equipment
- Depth scale and adjustable depth stop
- Electromagnetic clutch quill feed system
- Adjustable work table, rotating and tilting
- work light
- Manual fine feed control handwheel
- Automatic spindle reversing system for tapping
- Thermomagnetic motor breaker switch
- Machined base with coolant tank
- Safety drill guard with microswitch
- Automatic tool ejector
- Emergency stop button
- CE mark
Clausing Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table, 36 – 2280 RPM by electronic inverter variable speed, 3.46” diameter quill, 4MT taper spindle, Electromagnetic clutch quill feed, 4 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage Available through Commonwealth Industrial—your Clausing sales and service partner.
