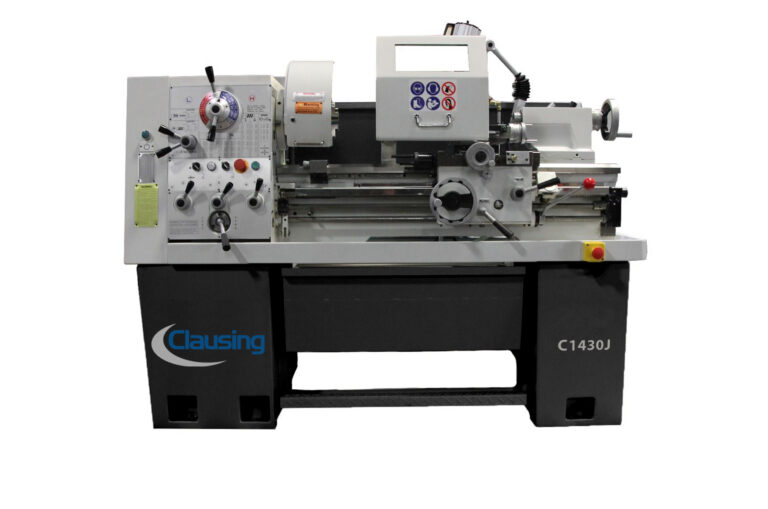

C1430J – Clausing Geared Head Lathe with 14.25” Swing over Bed, Gap Bed Engine Lathe
Features and Benefits:
Clausing geared head lathes are the industry standard. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Camlock Spindles, a wide range of spindle speeds, full length rear splash guard with coolant system, and inch/metric threading make this machine a must have for any machine shop.
Geared head lathes use a belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into a certain configurations recorded on a legend plate.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Engine Lathe |
| Spindle Speed Control | Geared Head |
| Spindle (Hp) | 3 |
| Swing Over Bed (inch) | 14.25 |
| Swing Over Cross slide (inch) | 8.265 |
| Swing in Gap (inch) | 22 |
| Distance Between Centers (inch) | 30 |
| Bed Width (inch) | 10 |
| Spindle Bore (inch) | 1.625 |
| Spindle Nose (camlock) | D1-5 |
| Spindle Nose Taper | 3 MT |
| Number of Spindle Speeds | 16 |
| Spindle Speed RPM Range | 33 – 2000 |
| Cross Slide Travel (inch) | 7.6 |
| Width of Cross Slide (inch) | 5.9 |
| Top Slide Travel (compound) (inch) | 4 |
| Tailstock Quill Diameter (inch) | 2 |
| Tailstock Quill Travel (inch) | 4.75 |
| Tailstock Quill Taper | 3 MT |
| Longitudinal Feed Range (in/rev) | 0.0012 – 0.016 |
| Cross Feed Range (in/rev) | 0.0004 – 0.0053 |
| Number of Inch Pitches | 36 |
| Range of Inch Pitches | 4 – 72 |
| Number of Metric Pitches | 27 |
| Range of Metric Pitches | 0.4 – 7 |
| Number of Diametral Pitches | 21 |
| Range of Diametral Pitches | 8 – 44 |
| Number of Module Pitches | 18 |
| Range of Module Pitches | 0.3 – 3.5 |
| Coolant System | Yes |
| Voltage Required (220) | 230/460 |
| Phase | 3 |
| Machine Foot Print (LxWxH) (inch) | 63 x 35 x 50 |
| Machine Weight (lbs.) | 1,870 |
Machine Features:
- 30” between center distance
- D1-5 Camlock spindle nose
- 3 Hp (2.25Kw) spindle motor
- 14” swing over the bed
- Induction hardened and precision ground bed
- Precision tapered roller spindle bearings
- Full metric/imperial threading via universal gearbox
- Foot spindle brake
- Chip pan and splash guard
- Interlocked chuck guard and leadscrew cover
- Tool box, steady rest, and manual
Clausing Geared Head Lathe
14.25” Swing over bed, Gap Bed Engine Lathe, 2 Speed 3 Hp Spindle motor, 30” between centers, 8.265” Swing over the cross slide, 33 to 2000 RPM, 16 Speed, 1.625” Spindle Bore, D1-5 camlock spindle nose, 2” Tailstock quill diameter with 3 morse taper bore, Inch/Metric threading with various pitch settings, 230/460 Volts, 3 Phase Available through Commonwealth Industrial—your Clausing sales and service partner.
