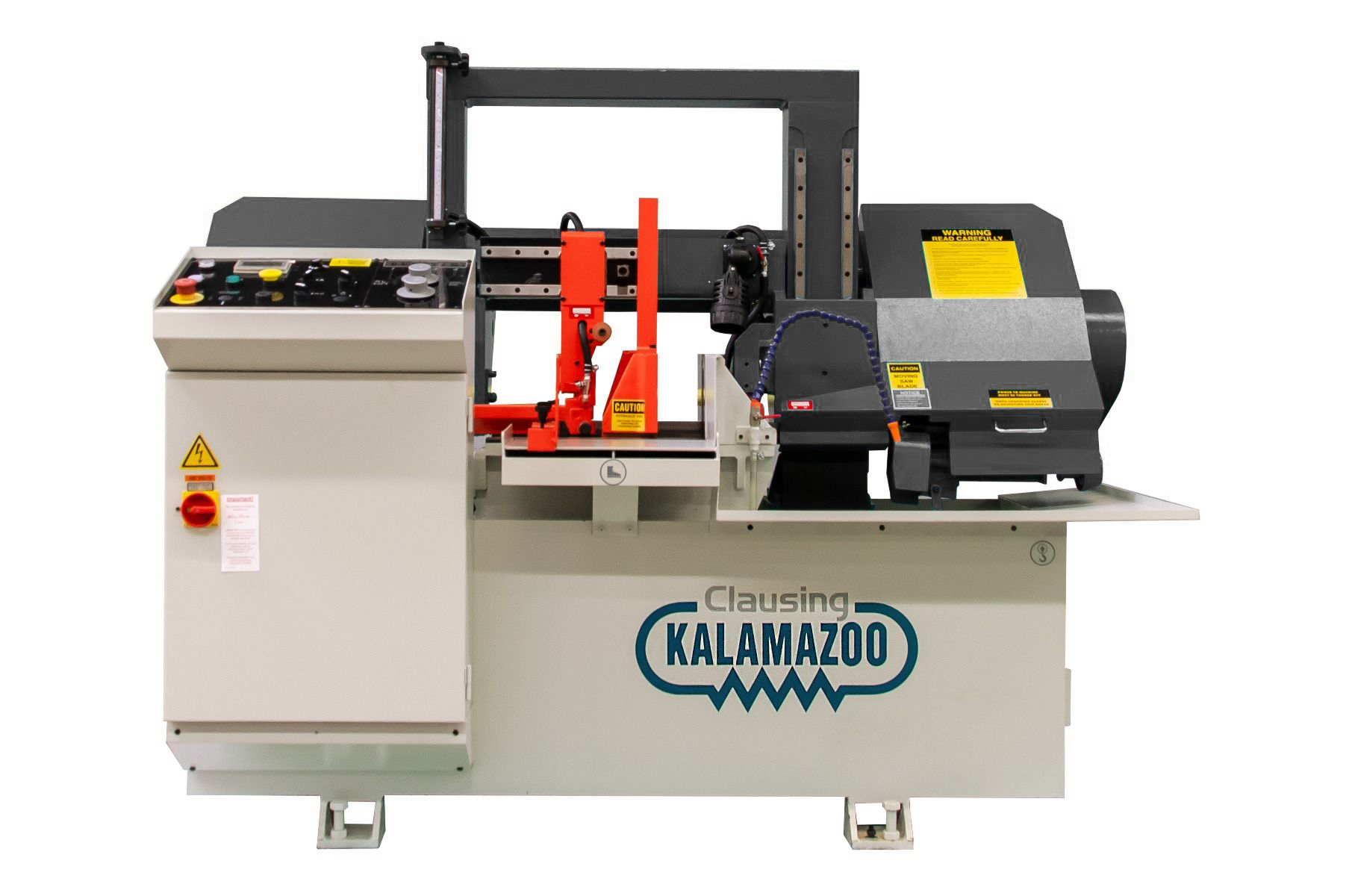

H1013SA – Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 10.2” x 13.4” Max Rectangular Capacity
Features and Benefits:
This Semi-automatic Double Column Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at either 230 or 460, other voltages may require a transformer or special order.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Infinitely Variable Speed |
| Motor | *5 Hp, *230v 3 Ph |
| Hydraulic Pump Motor | 1 Hp |
| Hydraulic Oil Capacity | 6.6 gallons |
| Blade Speeds | 49-262 fpm |
| Blade Size (W x T x L) | 1.25” x 0.042” x 161” |
| Blade Tension | Hydraulic |
| Coolant | Recirculating 1/8 Hp |
| Coolant Capacity | 10.57 gallons |
| 90° Cutting Capacity Round | 10.2” |
| 90° Cutting Capacity Square | 10.2” |
| 90° Cutting Capacity Rectangular | 10.2” x 13.4” |
| Length | 47” |
| Width | 78” |
| Height | 61” |
| Bed Height | 31.1” |
| Net Weight | 2,100 lbs. |
| Shipping Weight | 2,500 lbs. |
Machine Features:
- Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable speed
- Digital blade speed indicator
- Hydraulic powered chip conveyor
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads and an additional wire brush
- Operation and parts manual
- Two (2) year limited warranty
Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 10.2” x 13.4” Max Rectangular Capacity, 10.2” Round Capacity, 49 to 262 SFPM Blade Speed, 5 Hp drive motor, 230 volts 3 Phase Available through Commonwealth Industrial—your Clausing sales and service partner.
