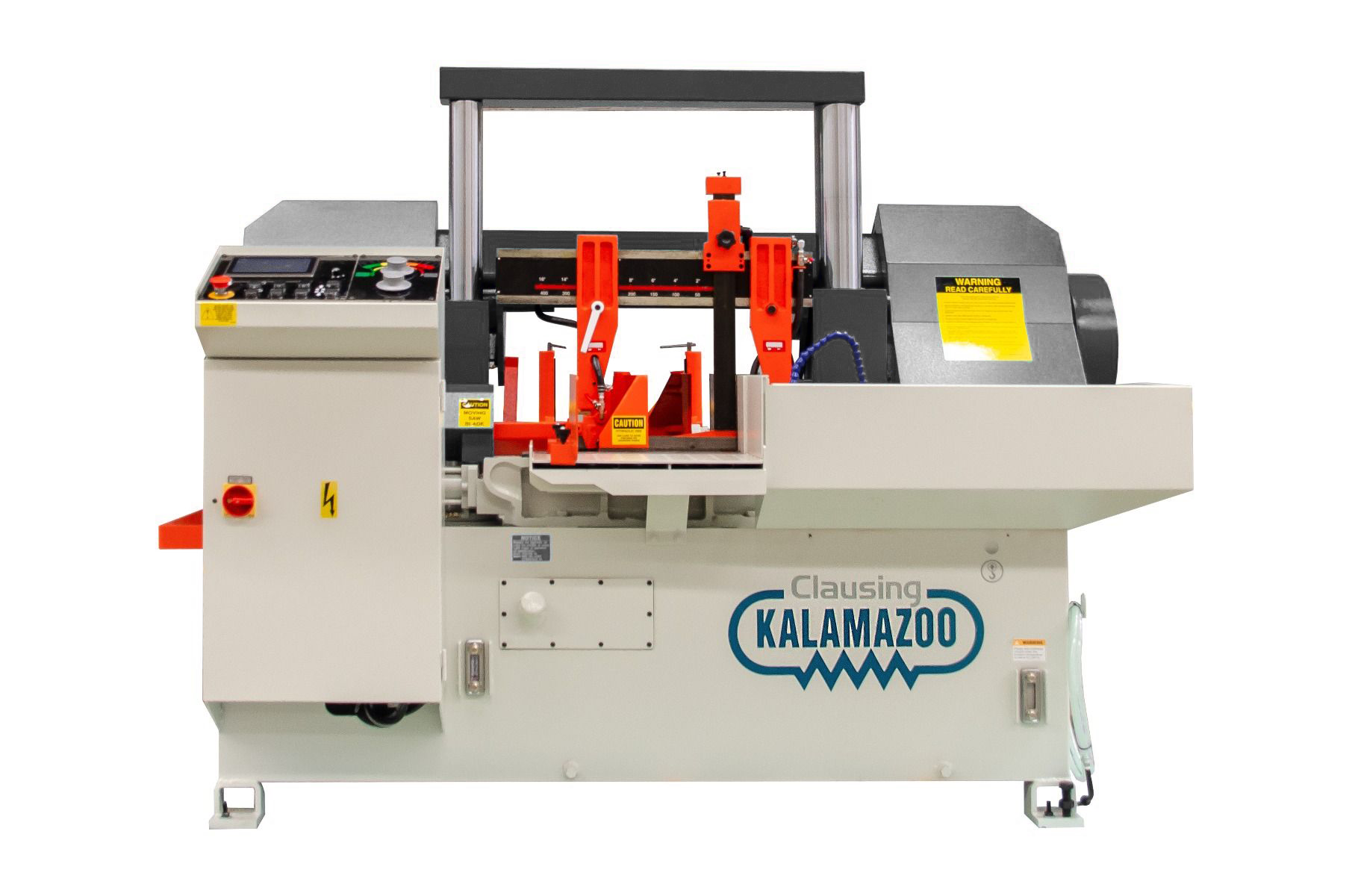

H1315NC – Clausing Kalamazoo Double Column Automatic Horizontal Bandsaw 15” x 12.6” Max Rectangular Capacity, 12.6” Round Capacity
Features and Benefits:
This Double Column Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Automatic |
| Drive Type | Inverter Controlled Variable Speed |
| Motor | *5 Hp, 230 3 Ph |
| Hydraulic Pump Motor | 1 Hp |
| Hydraulic Oil Capacity | 6.6 gallons |
| Blade Speeds (Variable speed) | 49-262 fpm |
| Blade Size (W x T x L) | 1.25” x .042” x 166.9” |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 11.9 gallons |
| 90° Cutting Capacity Round | 12.6” |
| 90° Cutting Capacity Square | 12.6” |
| 90° Cutting Capacity Rectangular | 15” x 12.6” |
| Bundle Cutting Width (Optional) | 7.48” x 11.81” |
| Bundle Cutting Height (Optional) | 2.75” to 5.51” |
| Feed Length/Index | 15.86” |
| Max. Feed | 255.9” |
| Length | 79.13” |
| Width | 78.75” |
| Height | 70.3” |
| Bed Height | 31.1” |
| Net Weight | 3,509 lbs. |
| Shipping Weight | 3,766 lbs. |
Machine Features:
- Oversized hydraulic cylinder
- Twin column design ensures rigid support during cutting cycle
- Hydraulic shuttle vice assembly
- Inverter controlled infinitely variable speed
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Smart NC-100 technology programmable up to 100 different jobs
- Easy recall and execution of stored parts
- Automatic shutoff after preset number of cuts or when out of stock
- 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
- Automatic kerf loss compensation & computer controlled multiple indexing
- Precision feed pressure & feed rate
- Bundle/single cutting mode switch
- Automatic height setting feature
- Hydraulic front and rear vises
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Adjustable cut-off stock fence
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads and an additional wire brush
- Operation and parts manual
Clausing Kalamazoo Double Column Automatic Horizontal Bandsaw 15” x 12.6” Max Rectangular Capacity, 12.6” Round Capacity, 49 to 262 SFPM Blade Speed, 5 Hp Drive Motor, 230 volts 3 Phase Available through Commonwealth Industrial—your Clausing sales and service partner.
