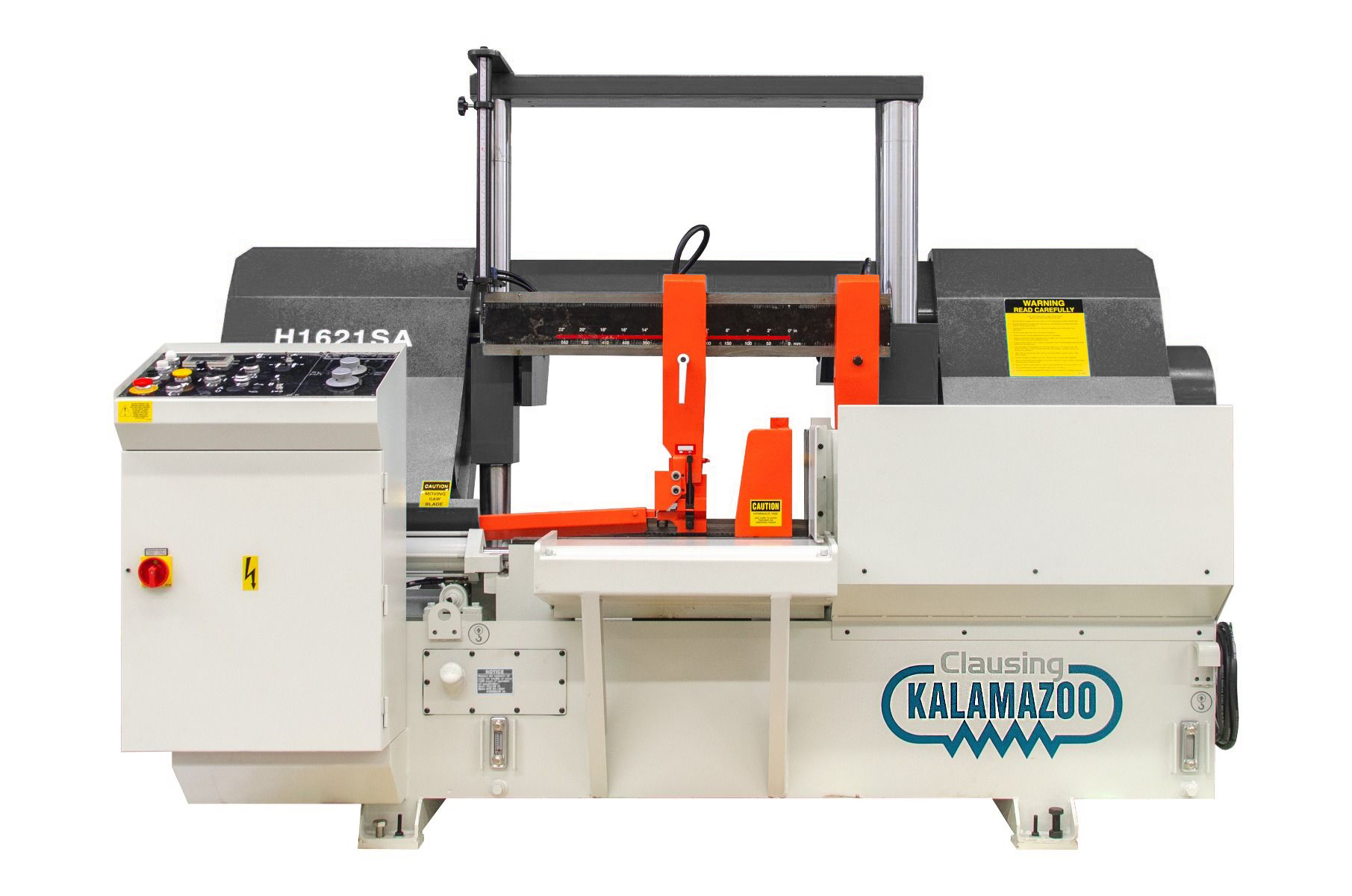

H1621SA – Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 16.5” x 21.6” Max Rectangular Capacity
Features and Benefits:
This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Infinitely Variable Speed |
| Motor | *7.5 Hp, *230v 3 Ph |
| Hydraulic Pump Motor | 2 Hp |
| Hydraulic Oil Capacity | 10 gallons |
| Blade Speeds (Variable speed) | 66-328 fpm |
| Blade Size (W x T x L) | 1.5” x .050” x 208.7” |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 21.25 gallons |
| 90° Cutting Capacity Round | 16.5” |
| 90° Cutting Capacity Square | 16.5” |
| 90° Cutting Capacity Rectangular (H x W) | 6.5” x 21.6” |
| Length | 109.7” |
| Width | 43.7” |
| Height | 72.6” |
| Bed Height | 27.5” |
| Net Weight | 4,188 lbs. |
| Shipping Weight | 4,629 lbs. |
Machine Features:
- Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable speed
- Blade Deviation Detection
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads and an additional wire brush
- Operation and parts manual
- Two (2) year limited warranty
Clausing Kalamazoo Double Column Semi-automatic Horizontal Bandsaw 16.5” x 21.6” Max Rectangular Capacity, 16.5” Round Capacity, 66 to 328 SFPM Blade Speed, 7.7 Hp drive motor, 230 volts 3 Phase Available through Commonwealth Industrial—your Clausing sales and service partner.
