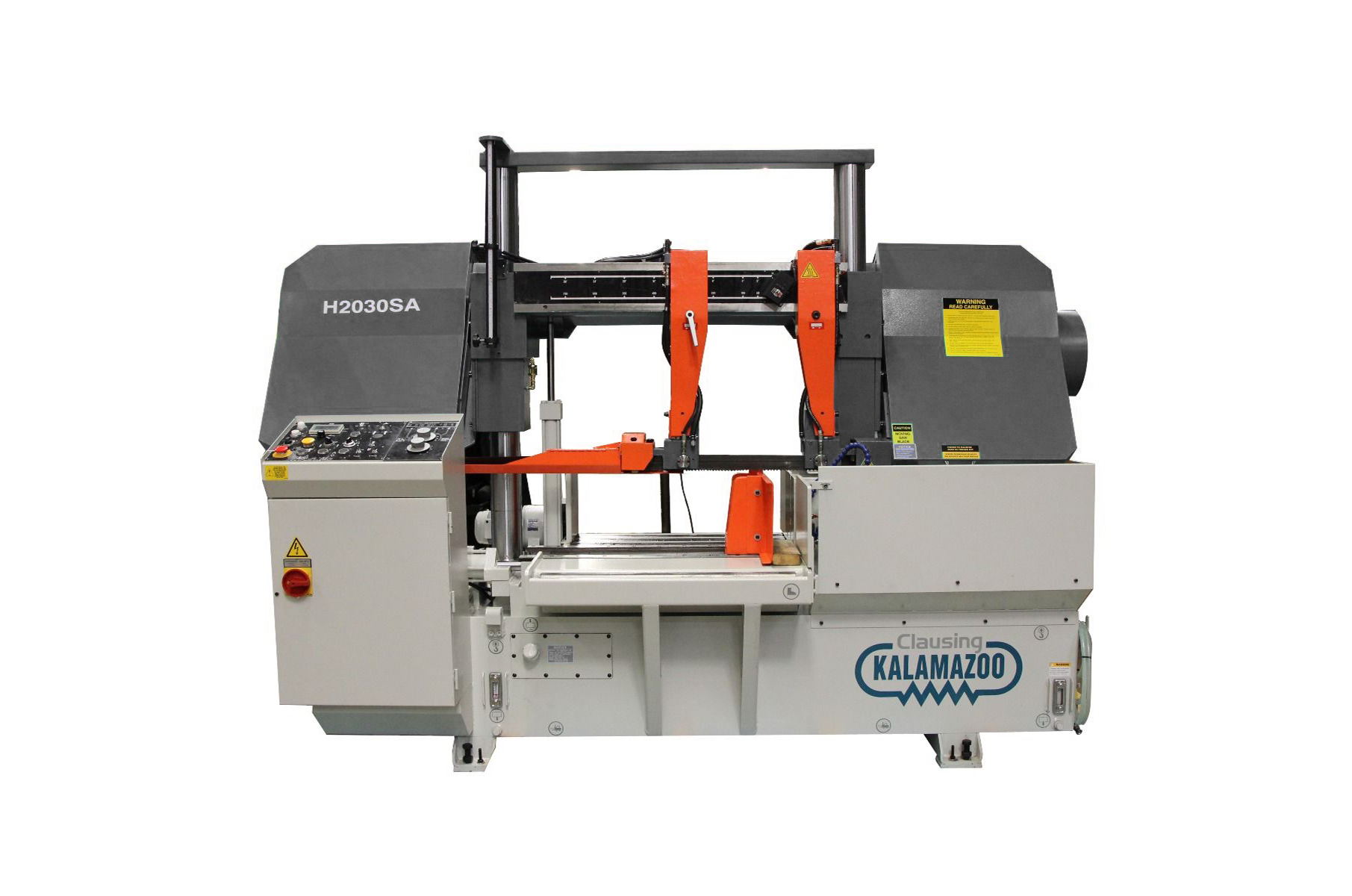

H2030SA – Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 20” x 29.5” Max Rectangular Capacity
Features and Benefits:
This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use and heavy-duty performance in semi-automatic operation. Double column design keeps the blade parallel and square to the work piece.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Infinitely Variable Speed |
| *Motor | 7.5 Hp, *230 3 Ph |
| Hydraulic Pump Motor | 2 Hp |
| Hydraulic Oil Capacity | 10 gallons |
| Blade Speeds (Variable speed) | 66–328 fpm |
| Blade Size (W x T x L) | 2” x .063” x 238” |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 21.5 gallons |
| 90° Cutting Capacity – Round | 20” |
| 90° Cutting Capacity – Square | 20” |
| 90° Cutting Capacity – Rectangular | 20” x 29.5” |
| Length | 122.9” |
| Width | 42.2” |
| Height | 82.1” |
| Bed Height | 27.5” |
| Net Weight | 5,016 lbs. |
| Shipping Weight | 5,720 lbs. |
Machine Features:
- Twin column design ensures rigid support during cutting cycle
- Infinitely variable speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Last cut selector switch
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool kit, leveling pads, additional wire brush
- Operation and parts manual
- Two (2) year limited warranty
Clausing Kalamazoo Double Column Semi-automatic Horizontal Bandsaw — 20” x 29.5” Max Rectangular Capacity, 20” Round Capacity, 66–328 SFPM Blade Speed, 7.5 Hp drive motor, 230 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
