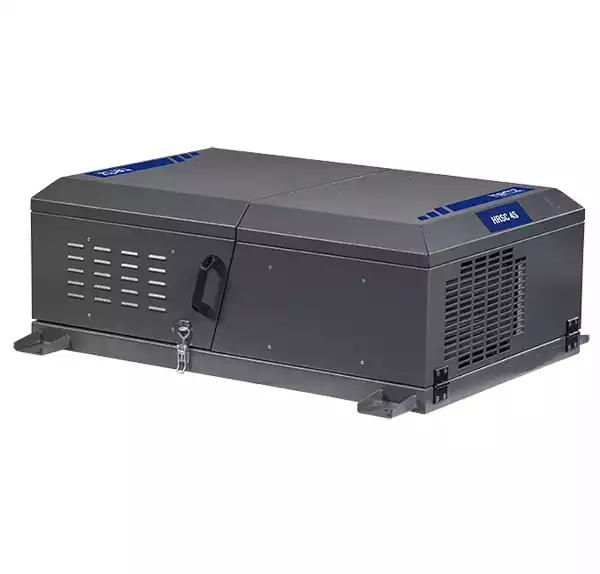

Hertz HRSC series compressors are designed to meet the compressed air requirements of rail system vehicles. With these products that are specially designed for customers considering varying demands of each manufacturer, Hertz is a reliable supporter for the manufacturers of rail systems (trains, trams).
| Model | Pressure | Capacity* | Motor Power | Connection size | Dimensions (mm) | Weight | Noise** | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | L/min | cfm | kW/HP | Length | Width | Height | kg | dB(A) | ||
| HRSC 4 | 10 | 145 | 310 | 11 | 3/4 | G 1/2″ | 1100 | 886 | 485 | 125 | 67 |
| HRSC 10 | 10 | 145 | 800 | 28 | 7,5/10 | G 1/2″ | 1328 | 940 | 540 | 235″ | 69 |
| HGS 5,5 D M | 7 | 100 | 650 | 23 | 5,5/7,5 | G 1/2″ | 1000 | 550 | 625 | 205 | 69 |
| HRRC 2 | 8 | 115 | 130 | 4.6 | 1,1/1,5 | G 1/2″ | 1100 | 886 | 485 | 115 | 72 |
Long maintenance intervals and low maintenance costs
Optional installation on the cars (on the car, inside the car or under the car)
Quiet operation, low vibration
Light and compact structure
Reliable and durable
Directly-coupled drive system
CE Certified air tanks complying with SPVD (Simple Pressure Vessel Directive) and designed as per EN 286-3 standard
Directly coupled with the elastic coupling
Quiet and efficient axial fan directly connected to the main motor)
Cartridge type mechanical dryer that separates oil particles and aerosols
Easy-to-detach spin-on type separator
Oil separator filter
Minimum pressure valve
Thermostatic valve
Compact distribution panel integrated to the body
Simple and effective motor starting system
24 DC control system
