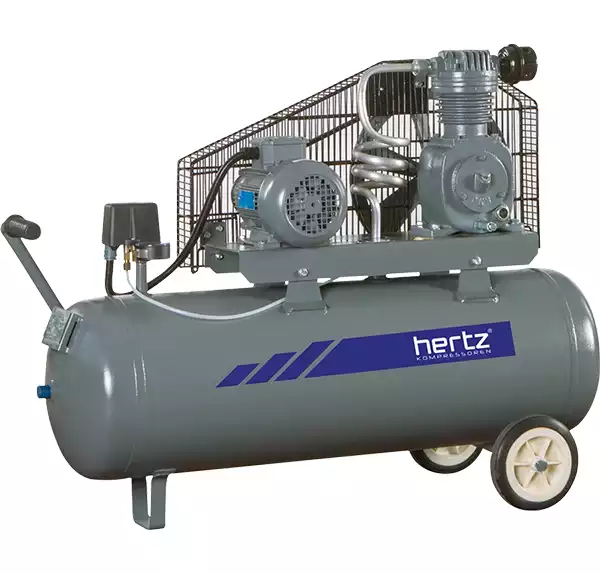

Hertz Single & Double Stage Series

Single Stage Model	Depot / Litre	Bar	Piston Displacement L / min	Motor Power kW / HP	Air Connection	Dimensions (mm)			Weight (kg)
Single Stage Model	Depot / Litre	Bar	Piston Displacement L / min	Motor Power kW / HP	Air Connection	Lenght	Width	Height	Weight (kg)
H 2-100 M	100	8	178	1,5 / 2	2 x G¼”	450	1100	820	81
H 3-200 M	200	8	290	2,2 / 3	2 x G¼”	450	1445	965	120
H 4-300	250	8	501	3/4	1 x G¼” + 1 x G¾”	450	1745	1000	147
H 5,5-300	250	8	649	4 / 5,5	2 x G¼” + 1 x G¾”	450	1745	1030	180
H 5,5-500	500	8	649	4 / 5,5	2 x G¼” + 1 x G¾”	640	1915	1260	264
H 7,5-500	500	8	971	5,5 / 7,5	2 x G¼” + 1 x G¾”	640	1915	1350	283
H 10-500	500	8	1222	7,5 / 10	2 x G¼” + 1 x G¾”	640	1915	1370	297
H 15-500	500	8	1766	11/15	2 x G¼” + 1 x G¾”	700	1840	1520	465

Double Stage Model	Depot / Litre	Bar	Piston Displacement L / min	Motor Power kW / HP	Air Connection	Dimensions (mm)			Weight (kg)
Double Stage Model	Depot / Litre	Bar	Piston Displacement L / min	Motor Power kW / HP	Air Connection	Lenght	Width	Height	Weight (kg)
H 2-100 MT	100	12.5	145	1,5 / 2	2 x G¼”	450	1040	820	86
H 3-200 MT	200	12.5	145	2,2 / 3	2 x G¼”	450	1445	965	132
H 4-300 T	250	12.5	334	3/4	1 x G¼” + 1 x G½”	450	1755	1000	167
H 5,5-300 T	250	12.5	324	4 / 5,5	2 x G¼” + 1 x G¾”	450	1755	1030	198
H 5,5-500 T	500	12.5	324	4 / 5,5	2 x G¼” + 1 x G¾”	640	1910	1255	330
H 7,5-500 T	500	12.5	647	5,5 / 7,5	2 x G¼” + 1 x G¾”	640	1910	1275	350
H 10-500	500	12.5	726	7,5 / 10	2 x G¼” + 1 x G¾”	640	1910	1355	365

CE Certified air tanks complying with SPVD (Simple Pressure Vessel Directive) and designed as per EN 286-1 standard

Bearings with a long service life

Air suction filter and silencer

Impact lubrication system

Starting panel (For 1.1 – 4 kW models)

Solenoid discharge valve for loadless start (on models over 4 kW) Pressure switch

Check valve

Belt pulley guard

Relief valve

Easy tensioning of belt

Reciprocating Air Compressors

HERTZ reciprocating compressors have laid the foundation of the trust for the Hertz brand as they had been working for many years in many different applications and industries, especially in small enterprises since 1969, when they were first produced. Hertz reciprocating compressors, which are trouble-free and with a long service life, may be used safely in many applications with single and double stage options.

Belt-pulley drive system

Specially designed fan type pulleys

Easy tensioning of belt

Automatic Condensate Discharge Valve for the Air Tank

Star delta motor starting panel (For 5.5-7.5kW models)
