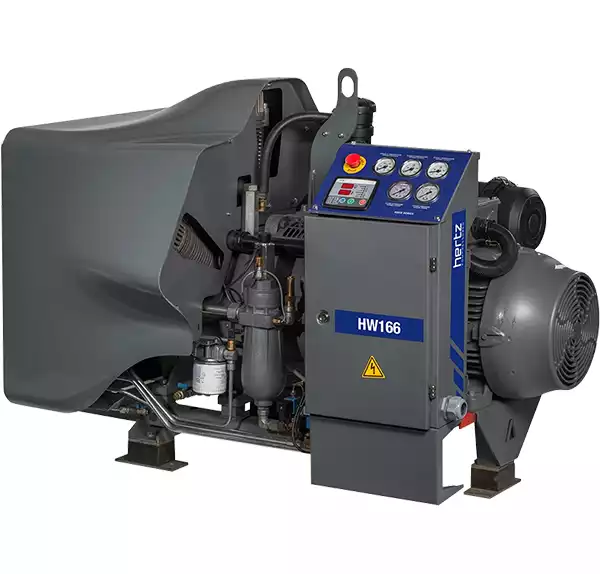

Hertz WAVE Series

Hertz proudly introduces new generation Wave of high pressure reciprocating compressors taking advancing the WAVE Series, which were developed in order to be used in all applications requiring high pressure, especially in the maritime sector, where Hertz has shown a keen interest and served from the day of its establishment until today.

Download WAVE Series Brochure

Models & Tech
Reviews (0)

Model	Pressure				Capacity (intake)		Voltage Frequency	Motor Power	Connection Size	Dimensions (mm)			Weight	Noise
Model	Min. Var – psi		Max. bar – psi		L/min	cfm	V/Hz	kW/HP	Connection Size	Length	Width	Height	kg	dB(A)
HW 52	40	580	12	174	862	30.5	460/60	11/5	G 1″	1300	1100	1030	425	80
HW 64	40	580	12	174	1077	38.1	400/50	11/5	G 1″	1300	1100	1030	411	80
HW 64	40	580	12	174	1445	51.1	460/60	15/20	G 1″	1580	1175	1100	461	81
HW 108	40	580	12	174	1806	63.8	400/50	15/20	G 1″	1580	1175	1100	421	81
HW 108	40	580	12	174	2214	78.2	460/60	22/30	G 1″	1580	1175	1100	685	83
HW 166	40	580	12	174	2767	97.7	400/50	30/40	G 1″	1580	1175	1100	630	83
HW 166	40	580	12	174	2821	99.6	460/60	30/40	G 1″	1640	1175	1100	772	84
HW 210	40	580	12	174	3526	124.5	400/50	37/50	G 1″	1640	1175	1100	680	84
