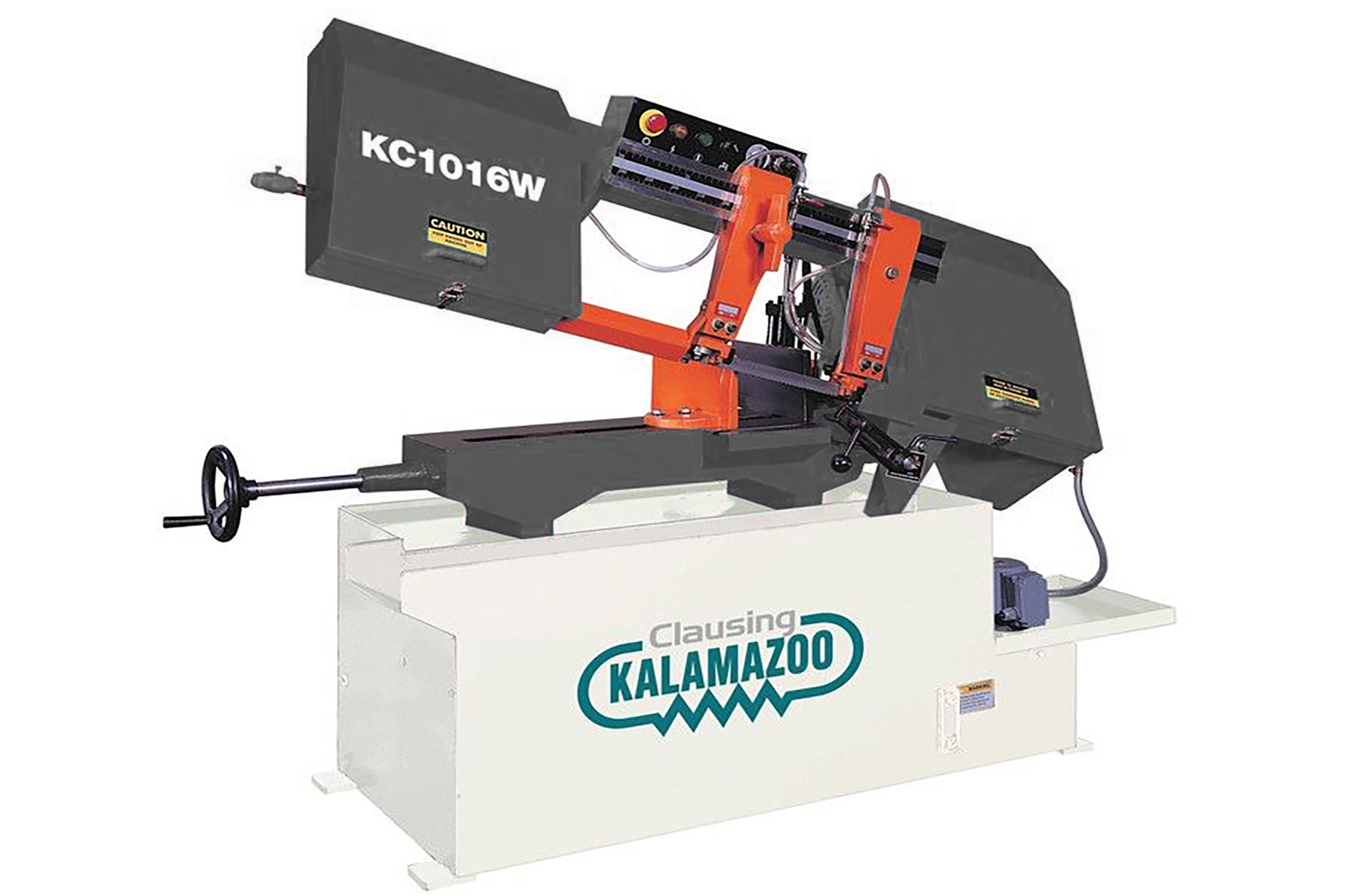

KC1016W – Clausing Kalamazoo Manual Horizontal Bandsaw 10.0” x 16.0” Max Rectangular Capacity
Features and Benefits:
Manual Horizontal Bandsaws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.
Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Manual |
| Drive Type | Step Pulley Drive (4 speeds) |
| Band Wheel Diameter | 15” flanged, cast iron |
| Blade | 1” x .035” x 11’ |
| Blade Speeds | 75, 121, 190, 305 fpm |
| 90° Capacity – Round | 10” |
| 90° Capacity – Rectangular | 9” x 14.5” |
| 45° Capacity – Round | 9” |
| 45° Capacity – Rectangular | 9” x 9” |
| Height (head-up) | 69” |
| Net Weight | 720 lbs. |
Machine Features:
- Quick positioning 45º vise
- Cast iron bed
- Totally enclosed transmission
- Quick and simple speed change
- 1” wide blade
- Blade cleaning brush
- Solid carbide blade guides with rollers
- Recirculating coolant system with application through both guides
- Stock stop
- Easily adjusted head feed
- Head control is hydraulic cylinder operated by needle valve
- Two Year Limited Warranty
Clausing Kalamazoo Manual Horizontal Bandsaw — KC1016W1: 1.5 Hp 110/220V 1ph; KC1016W: 2 Hp 230/460V 3ph. Step Pulley Drive, 4 Speeds 75, 121, 190, 305 SFPM. 10.0” x 16.0” Max Rectangular, 10” Round. Available through Commonwealth Industrial—your Clausing sales and service partner.
