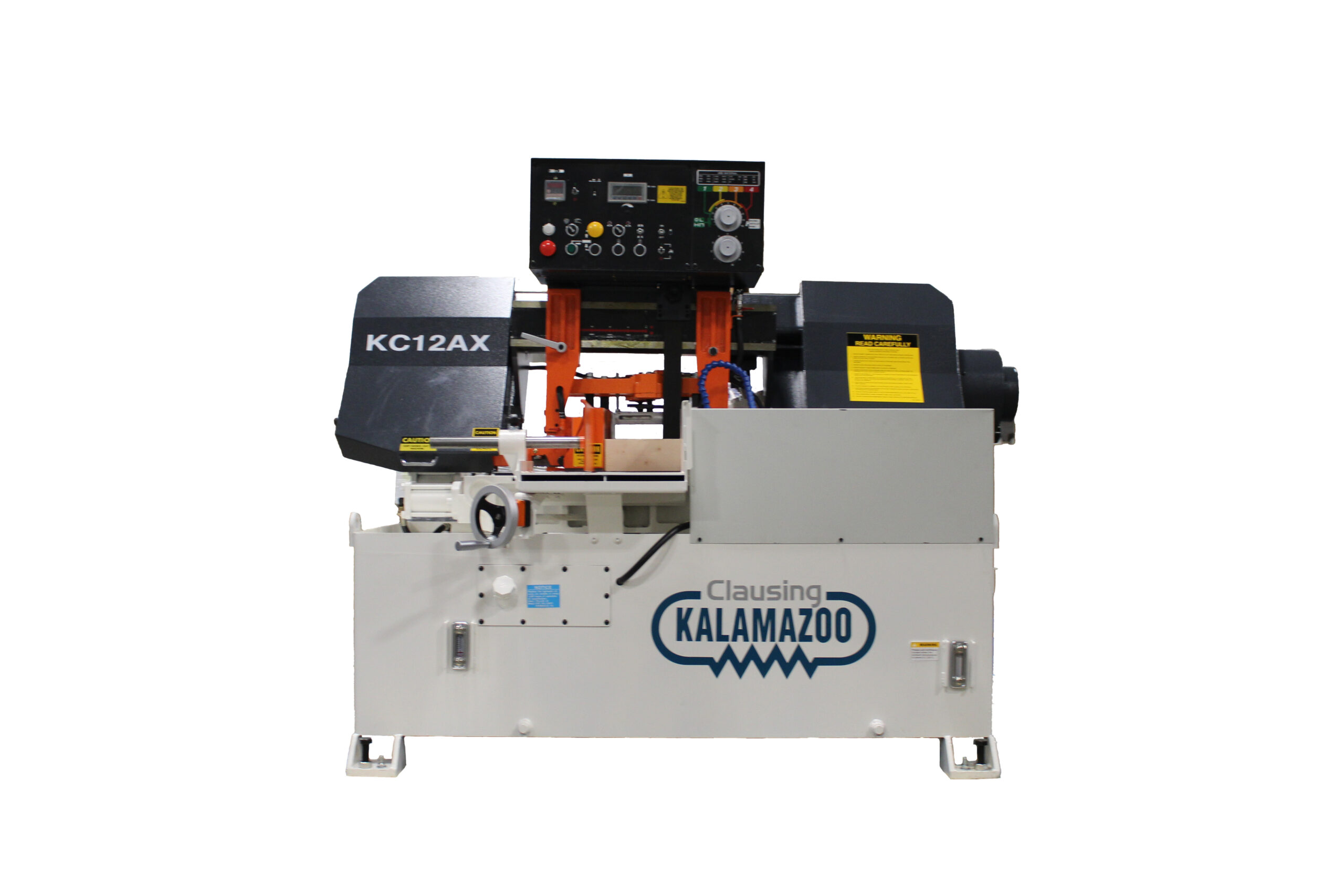

KC12AX – Clausing Kalamazoo Automatic Horizontal Bandsaw 12.75” x 12.6” Max Rectangular Capacity
Features and Benefits:
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
A powerful drive motor provides the power, and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Automatic |
| Drive Type | Infinitely variable blade speeds |
| Maximum Capacity Round (inch) | 12.75 |
| Maximum Capacity Rectangle (inch) | 12.75 x 12.6 |
| Voltage | 230/460 |
| Phase | 3 |
| Coolant System | Yes |
| Blade Size | 1 ¼” x .042” x 150.4” |
| Blade Speeds (SFPM) | 95–395 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 5 |
Machine Features:
- Full or semi-automatic operation
- Vise clamps work piece both sides of blade
- Blade breakage/stoppage switch
- Overload protection
- Hydraulic Blade Tension System
- Auto shutoff at end of material or after preset number of cuts
- Hydraulic down feed
- Recirculating Coolant System
- Front-mounted digital length gauge
- Flushing Hose for Cleanup
- Automatic height setting feature
- 2 Year limited warranty
Clausing Kalamazoo Automatic Horizontal Bandsaw — 12.75” x 12.6” Max Rectangular, 12.75” Round, 95–395 SFPM, 5 Hp drive motor, 230/460V 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
