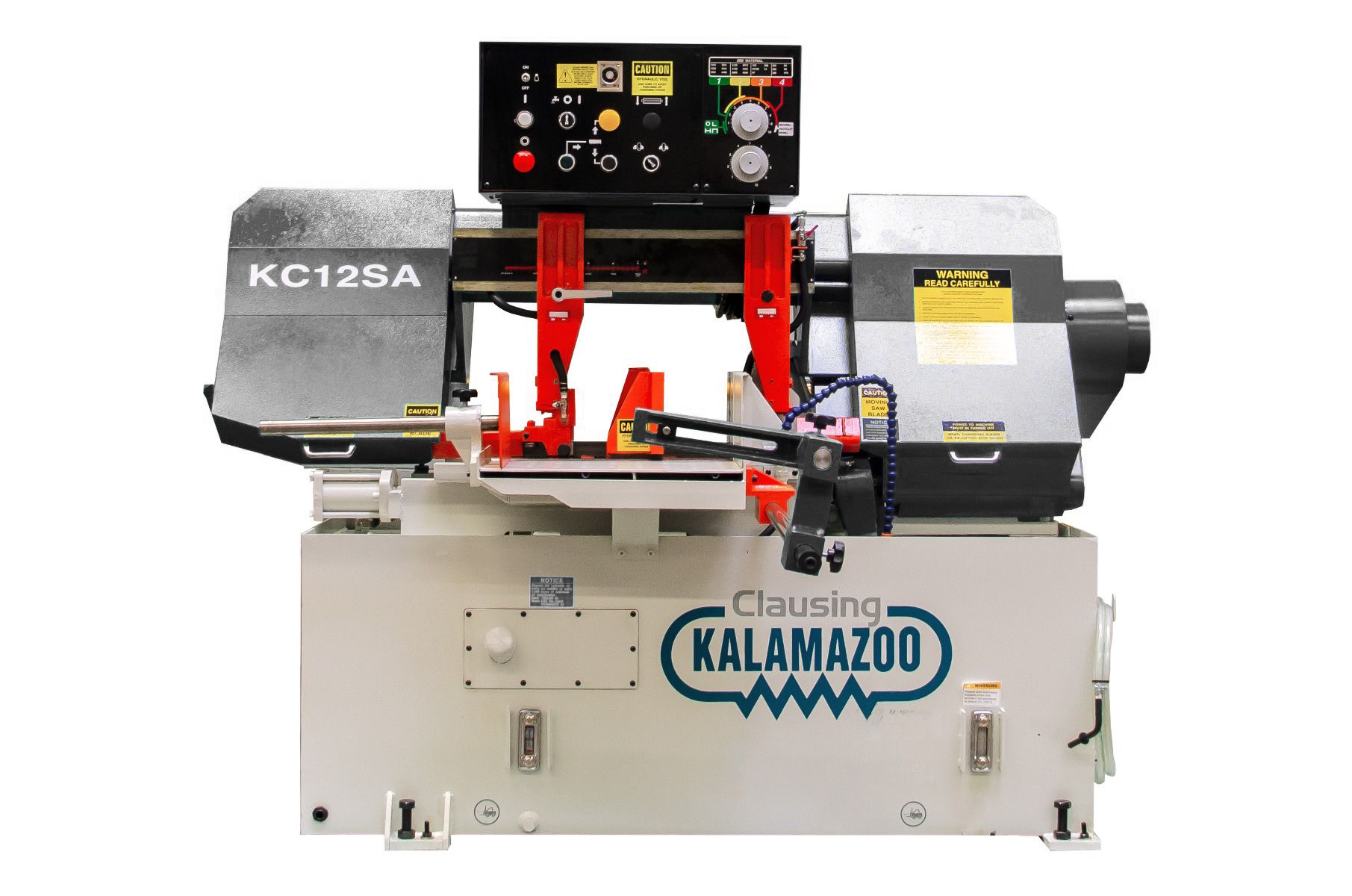

KC12SA – Clausing Kalamazoo Semi-Automatic Horizontal Bandsaw 12.75” x 12.6” Max Rectangular Capacity
Features and Benefits:
This Semi-automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in semi-automatic operation.
A powerful drive motor provides the power, and the infinitely variable blade speed gives the ability to generate heavy production jobs.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Infinitely Variable |
| Motor | 5 Hp 230/460V 3ph |
| Hydraulic Pump Motor | 1 Hp |
| Hydraulic Oil Capacity | 6.5 gallons |
| Band Wheel Dia. | 16” |
| Blade Speeds | 85–445 fpm |
| Blade Size | 1.25” x .042” x 150.4” |
| Coolant | Recirculating — 10 gallons |
| 90° Capacity – Round | 12.75” |
| 90° Capacity – Rectangular | 12.75” x 12.6” (7.9” x 14.2”) |
| Bundle Cutting Width (Optional) | 6.5” x 10” |
| Bundle Cutting Height (Optional) | 2” to 8” |
| Length | 47” |
| Width | 75” |
| Height Down | 61” |
| Height (head-up) | 73” |
| Bed Height | 29.5” (without pads) |
| Net Weight | 2,039 lbs. |
| Shipping Weight | 2,260 lbs. |
Machine Features:
- Semi-automatic operation
- Infinitely variable blade speeds
- LED blade speed readout
- Vise clamps work piece both sides of blade
- Powered hydraulic down feed
- Automatic height setting feature
- Auto shutoff at end of cut
- Blade breakage/stoppage switch
- Hydraulic Blade Tension System
- 110v. control circuit
- Overload protection
- 5 hp 230/460v. 3 ph. Drive Motor
- Recirculating Coolant System
- (1) General Purpose Bi-Metal Blade
- Stock Stop Assembly
- 1 Gallon Coolant
- Tool Kit
- Operator’s Manual and Flushing Hose for cleanup
- 2 Year Limited Warranty
Clausing Kalamazoo Semi-Automatic Horizontal Bandsaw — 12.75” x 12.6” Max Rectangular, 12.75” Round, 85–445 SFPM, 5 Hp drive motor, 230/460V 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
