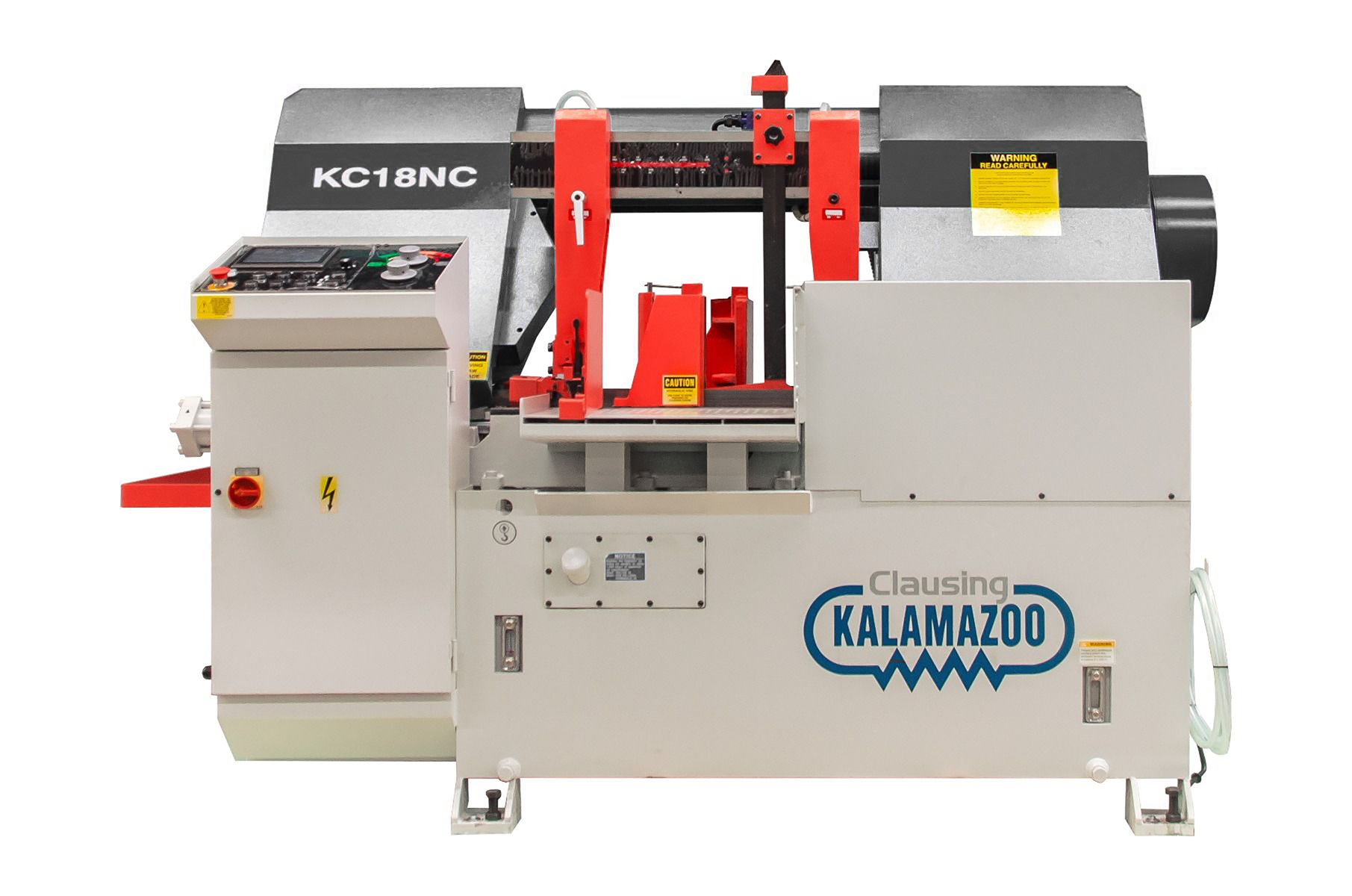

KC18NC – Clausing Kalamazoo Automatic Horizontal Bandsaw 18” x 18” Max Rectangular Capacity
Features and Benefits:
This Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic NC Hinge operation.
A powerful drive motor provides the power, and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Automatic |
| Drive Type | Infinitely Variable |
| *Motor | 7.5 Hp, *230 3 Ph |
| Hydraulic Pump Motor | 2 Hp |
| Hydraulic Oil Capacity | 10.6 gallons |
| Blade Speeds (Variable speed) | 66-328 fpm |
| Blade Size (W x T x L) | 1.5” x .050” x 184” |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 21 gallons |
| 90° Cutting Capacity Round | 18” |
| 90° Cutting Capacity Square | 18” |
| 90° Cutting Capacity Rectangular (H x H) | 18” x 18” |
| Feed Accuracy | +/- .004” to .008” |
| Length of Remnant (manual) | .79” |
| Length of Remnant (automatic) | 2.95” |
| Minimum Cut Thickness | .197” |
| Bundle Cutting Width (Optional) | 7.48” x 11.81” |
| Bundle Cutting Height (Optional) | 2.75” to 5.51” |
| Feed Length/Index | 23.3” |
| Max. Feed | 252.6” |
| Length | 96.4” |
| Width | 90.9” |
| Height (head up) | 90.9” |
| Bed Height | 29.5” |
| Net Weight | 6,380 lbs. |
| Shipping Weight | 6,850 lbs. |
Machine Features:
- Oversized hydraulic cylinder
- Hydraulic shuttle vice assembly
- Inverter controlled infinitely variable speed
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Smart NC-100 technology programmable up to 100 different jobs
- Easy recall and execution of stored parts
- Automatic shutoff after preset number of cuts or when out of stock
- 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
- Automatic kerf loss compensation & computer controlled multiple indexing
- Precision feed pressure & feed rate
- Bundle/single cutting mode switch
- Automatic height setting feature
- Hydraulic front and rear vises
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Adjustable cut-off stock fence
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads and an additional wire brush
- Operation and parts manual
- Two (2) year limited warranty
Clausing Kalamazoo Automatic Horizontal Bandsaw 18” x 18” Max Rectangular Capacity, 18” Round Capacity, 66–328 SFPM Blade Speed, 7.5 Hp drive motor, 230/460 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
