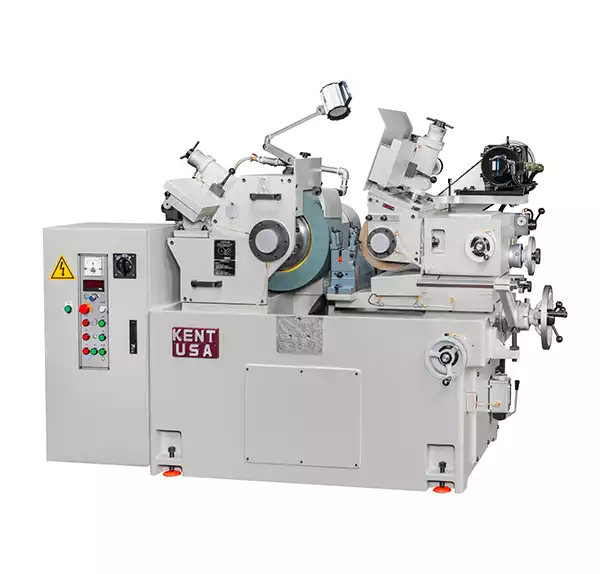

Kent USA KCG-18S
- Best Seller! Very competitively priced centerless grinder ideal for production manufacturing.
- 0.04″-2″ Diameter Grinding Capacity
- Grinding Wheel Size 18″ x 8″ x 9″
- Regulating Wheel 10″ x 8″ x 4.38″
- 15 HP Main Grinding Wheel Motor
- Compact Design for Minimum Use of the Shop Floor Space
- Easy Controls for Maximum Work Efficiency
- Automatic Lubrication with Safety interlock to Prevent Machine Operation When There is No Lubrication Present
- Hydraulic Dresser for Both Grinding and Regulating Wheels Ensure Smooth and evenly Trued Wheels
Download KCG Centerless Grinder Brochure 2020 Brochure
| Grinding Range (Standard / Extended) |
Ø 0.04″ – 2″ / Ø 1.5″ – 4″ |
| Grinding Wheel Size |
18″ x 8″ x 9″ |
| Regulating Wheel Size |
10″ x 8″ x 4.38 |
| Grinding Wheel Speed |
1200 RPM |
| Regulating Wheel Speed |
10 Steps 13-316 RPM, Infinitely Variable 10-250 RPM (S Model) |
| Grinding Wheel Motor |
20 HP |
| Regulating Wheel Motor |
2 HP (1200 RPM) |
| Hydraulic Pump Motor |
1 HP (1800 RPM) |
| Coolant Pump Motor |
1/4 (3600 RPM) |
| Upper Slide Feed Graduation |
0.0001″ (0.200″ Per Rev) |
| Lower Slide Feed Graduation |
0.0002″ (0.400″ Per Rev) |
| Lower Slide Micro Feed |
0.000050″ (Grad), 0.010″ (Rev) |
| Dressing Device Graduation |
0.0005″ (Grad), 0.050″ (Rev) |
| Regulating Wheel Tile Angle |
+5 ~ -3° |
| Regulating Wheel Swivel Angle |
± 5° |
| Net Weight |
6160 LBS |
| Gross Weight |
6820 LBS |
Standard Accessories
- Grinding wheel and flange
- Regulating wheel and flange
- In-feed work rest and carbide blade
- Thru-feed work rest and carbide blade
- Diamond tool for dresser
- Coolant system
- Work lamp
- Standard tools
Optional Accessories
- Wheeling balancing & arbor
- Hydraulic work ejector for in-feed grinding
- Manual work feeder for in-feed grinding
- Automatic in-feed unit
- Unloading attachment for through-feeding grinding
- Automatic loading & unloading for in-feeding grinding
- Profile grinding attachment w/ template & blade
- Magazine-type automatic loading unit for through-feed grinding
- Hopper-type automatic loading unit for through-feed grinding
- Long bar grinding support unit
- Paper filter & magnetic separator unit
- Hydrocyclone coolant filter unit
- Vibratory feeder for through-feed grinding
