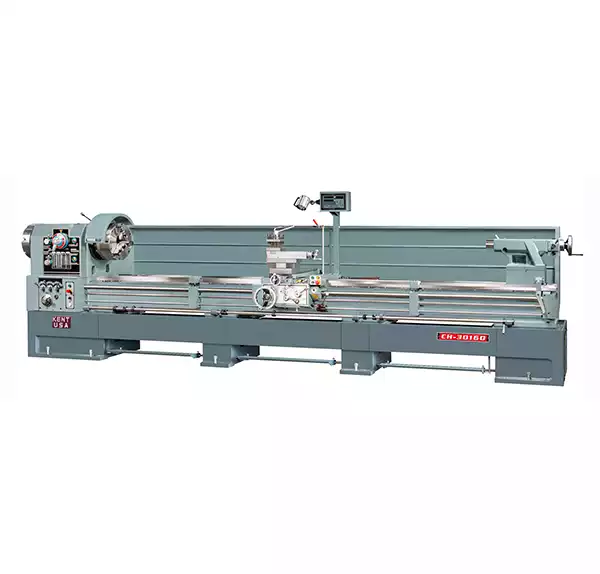

Kent USA CH-30 Series
- 15 HP Spindle Motor, 12-Speeds
- 4.1” (104mm)Spindle Through Hole
- Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
- Dual Inch/Metric Calibrated Tailstock
- Dual Inch/Metric Dials
Download Kent USA CH Series Lathe-r Brochure
| Swing Over Bed |
30″ |
| Swing Over Cross Slide |
21.4″ |
| Swing Over Gap |
39″ |
| Width of Bed |
15.75″ |
| Distance Between Centers |
90″ (Opt. 120″ / 160″ / 200″) |
| Cross Slide Travel |
15.75″ |
| Top Slide Travel |
8.98″ |
| Spindle Bore |
4.1″ |
| Spindle Speeds |
12 Steps |
| Spindle Speed Range |
13–1200 RPM |
| Through Hole Diameter |
4.5″ |
| Spindle Nose |
D1-11 |
| Spindle Bore Taper |
MT#7 |
| Thread – Standard (Whit-worth) |
44 (2-72) TPI |
| Thread – Metric Pitch |
39 (0.2-14) mm |
| Longitudinal Feed |
0.0012″–0.039″ in/rev |
| Cross Feed |
0.0004″–0.0117″ |
| Quill Travel |
10″ |
| Quill Diameter |
3.15″ |
| Quill Bore Taper |
MT#5 |
| Main Motor |
15 HP (Opt. 20 HP) |
| Coolant Pump Motor |
1/8 HP |
| Packing Dimension |
160″ / 187″ / 227″ x 45″ x 76″ |
| Net Weight |
7,678 / 8195 / 9526 lbs |
| Gross Weight |
8,178 / 8795 / 10,228 lbs |
Standard Accessories
- 3-jaw chuck (16”, made in Taiwan)
- Steady rest(10”, roller)
- Follow rest(40-184mm)
- Thread chasing dial
- 4 position tool post
- Coolant system with a full-length splash guard
- 4 position carriage stop
- 2-speed tailstock
- Z-axis Rapid travel
- Dead center x 2 pcs
Optional Accessories
- DRO System 90″ – 160”(2-axis, x=0.0001”/z=0.0005” res)
- DRO installation charge
- Aloris DA #5-SET (Tool Post and 6 holders)
- Royal spindle type live center (M.T. #5)
- BTC 3-jaw chuck w/back plate (Zero-set, 15” D1-11)
- 4-jaw independent Chuck (16” D1-11)
- Adaptor plate for mounting chucks at the back of spindle
- Faceplate (20” D1-11)
- Taper turning attachment
- Micrometer carriage stop
- Rustlick coolant (1 gallon, mixes 1:30)
