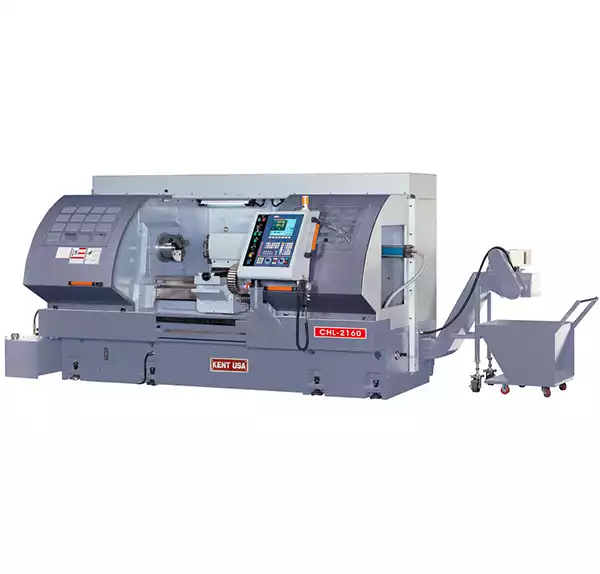

Kent USA CHL-21 Series
- 15 HP Fanuc Servo Spindle motor
- 4 operating modes: Manual, Teach-in, Conversational, and CNC
- Rigid Meehanite castings with extra ribbing
- Induction hardened and ground ways
- 4 speed Auto-shifting gearbox with alloy steel gears that are hardened and ground
- Extra large precision ground ballscrews
- 20-2000 RPM range; electronic handwheels
- Auto Lube system with metered Check valves
Download Kent USA CNC Manual Teachable Precision Lathe (Email) Brochure
| Swing Over Bed |
20.98″ |
| Swing Over Cross Slide |
11.8″ |
| Distance Between Centers |
40″ / 60″ / 80″ / 120″ |
| Width of Bed |
13.58″ |
| Spindle Nose |
D1-8 or ASA A2-8 |
| Spindle Bore |
3.149″ |
| Spindle Taper |
M.T. #5 |
| Spindle Speeds |
20-2000 RPM |
| Longitudinal Travel (Z-Axis) |
28.3″ / 107.1″ |
| Cross Slide Travel (X-Axis) |
11.8″ |
| Z-Axis Ballscrew Diameter |
1.97″, 10 mm pitch / 2.48″, 10 mm pitch |
| X-Axis Ballscrew Diameter |
0.98″, 5 mm pitch |
| Z-Axis Rapid Traverse Speed |
394″/min |
| X-Axis Rapid Traverse Speed |
295″/min |
| Tailstock Quill Diameter |
3.346″ |
| Tailstock Quill Travel |
7″ |
| Tailstock Taper |
M.T. #5 |
| Spindle Motor |
15 HP |
| AC Servo Motor (Z-Axis) |
2.7 HP |
| AC Servo Motor (X-Axis) |
1.8 HP |
| Net Weight |
8929 LBS / 11684 LBS |
| Gross Weight |
9810 LBS / 13228 LBS |
| Packing Dimension |
126″ x 90.6″ x 88″ / 204.7″ x 90.6″ x 88″ |
Standard Accessories
- Fagor 8055i CNC control
- Fagor AC servo spindle motor
- Auto lubrication unit
- Flood coolant system
Optional Accessories
- 3-jaw chuck
- 4-jaw chuck
- Face plate
- Hydraulic chuck
- Hydraulic tailstock
- Follow rest
- Quick change toolpost
- Royal live center MT#3
