Commonwealth Industrial / Kent USA HR-30 Series

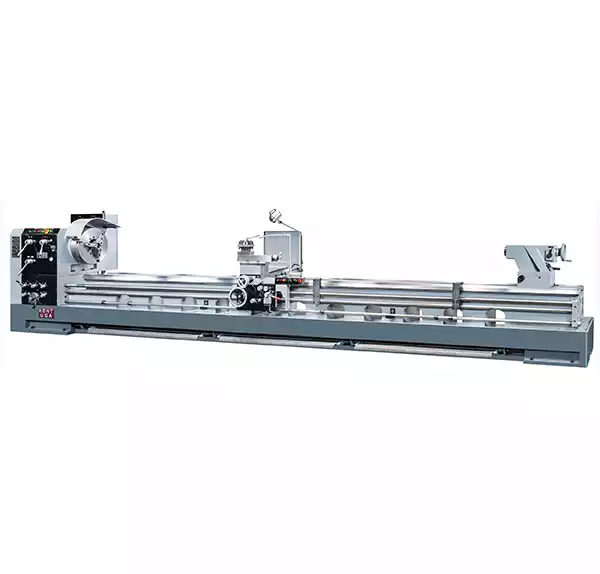

Kent USA HR-30 Series Manual Precision Lathe

OUT OF STOCK

Kent USA HR-30 Series

20 HP Spindle Motor, 12-Speeds
4.1” (6.1” Opt)Spindle Through Hole
Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
Spindle Jog Button Control
One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials (Optional)

Category: Manual Precision Lathes

Swing Over Bed	30.7″
Swing Over Cross Slide	21.25″
Swing Over Gap	42.1″
Width of Bed	18″
Distance Between Centers	80″ (Opt. 120″ / 160″ / 200″)
Cross Slide Travel	15.35″
Top Slide Travel	9.4″
Spindle Bore	4″
Spindle Speeds	12
Spindle Speed Range	14-1000 RPM
Through Hole Diameter	4.1″ (Opt. 6.1″)
Spindle Nose	D1-11 or A1-11
Spindle Bore Taper	MT#7 – MT#5
Thread – Standard (Whit-worth)	36 (2-72) TPI
Thread – Metric Pitch	65 (0.8-14) mm
Longitudinal Feed	0.002″–0.0276″ in/rev
Cross Feed	0.001″–0.00138″
Quill Travel	8.3″
Quill Diameter	4.133″
Quill Bore Taper	MT#6
Main Motor	20 HP
Coolant Pump Motor	1/8 HP
Packing Dimension	151″ / 198″ / 231″ / 270″ x 69″ x 73″

Standard Accessories

Halogen work light
3-position carriage stop
4-position tool post
Thread chasing dial
Steady rest
Coolant system

Optional Accessories

Digital Readout System
Royal spindle type live center
Taper turning attachment
BTC 3-jaw chuck with back plate
Micrometer carriage stop
Rustlick coolant
