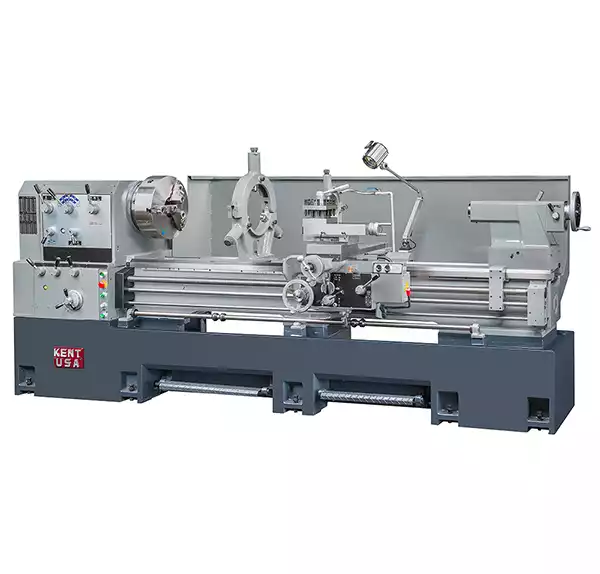

Kent USA HW-30 Series
- 15 HP spindle motor, 12-speeds
- 4.5″ (115 mm) spindle through hole
- Solid one piece full length casting base and bedways for maximum rigidity
- Spindle jog button control
- One-shot lubrication for apron, multi-position adjustable feed position stops
- Dual inch/metric calibrated tailstock
- Dual inch/metric dials
Download Manual Precision Lathes – HW Series Brochure
| Swing Over Bed |
30″ |
| Swing Over Cross Slide |
21.3″ |
| Swing Over Gap |
38.9″ |
| Width of Bed |
15.75″ |
| Distance Between Centers |
80″ (Opt. 120″ / 160″) |
| Cross Slide Travel |
14.75″ |
| Top Slide Travel |
8″ |
| Spindle Bore |
4.5″ |
| Spindle Speeds |
12 |
| Spindle Speed Range |
10-1000 RPM |
| Through Hole Diameter |
4.5″ |
| Spindle Nose |
D1-11 |
| Spindle Bore Taper |
MT#7 |
| Thread – Standard (Whit-worth) |
44 (2-56) TPI |
| Thread – Metric Pitch |
39 (0.5-14) mm |
| Longitudinal Feed |
0.002″–0.032″ in/rev |
| Cross Feed |
0.001″–0.0094″ |
| Quill Travel |
6.5″ |
| Quill Diameter |
3.3″ |
| Quill Bore Taper |
MT#5 |
| Main Motor |
15 HP |
| Coolant Pump Motor |
1/8 HP |
| Packing Dimension |
137” / 186” / 219” x 41” x 52” |
| Net Weight |
7010 / 8663 / 11330 lbs |
| Gross Weight |
7340 / 8994 / 11772 lbs |
Optional Accessories
- Digital Readout System
- Aloris DA #5-SET (Tool post and 6 holders)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate (Zero-set, 15″ D1-11)
- Adaptor plate and rear 12″ 3 jaw chuck for back of spindle
- Face plate (20″ D1-11)
- Taper turning attachment
- Micrometer carriage stop
