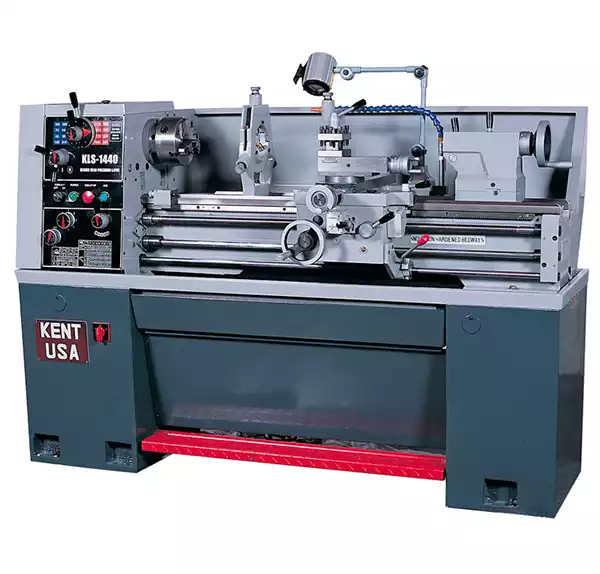

Commonwealth Industrial / Kent USA KLS-1440

Kent USA KLS-1440

  • 3 HP main spindle motor
  • 16 speeds, all geared headstock
  • Jog button for easy gear changes
  • Hardened and ground gears and bedways
  • Foot brake and T-Slot compound
  • Inch/metric reading on dials
  • Inch/metric ruler on tailstock quill
  • ISO 9001 certified manufacturer
Swing Over Bed 14″
Swing Over Cross Slide 8–5/8″
Swing Over Gap 20″
Width of Bed 8-1/8″
Distance Between Centers 40″
Cross Slide Travel 7″
Top Slide Travel 4″
Spindle Speeds 16
Spindle Speed Range 45-1800 RPM
Through Hole Diameter 1-1/2″
Spindle Nose D1-4 Camlock
Spindle Bore Taper MT#5
Thread – Standard (Whit-worth) 40 (4–112) TPI
Thread – Metric Pitch 22 (0.4–7.5) mm
Longitudinal Feed 0.0012”-0.0294” in/rev
Cross Feed 0.0004”-0.0108” in/rev
Lead Screw Diameter 7/8″
Threading Pitch 8 TPI
Quill Travel 4-3/4″
Quill Diameter 1-25/32″
Quill Bore Taper MT#3
Main Motor 3 HP (2 Speed, 3-phase)
Coolant Pump Motor 1/8 HP
Machine Dimension 76″ x 29″ x 47″
Packing Dimension 80″ x 35″ x 61″
Machine weight 1650 LBS
Packing weight 1950 LBS

Standard Accessories

  • 3-jaw chuck
  • 4-jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Thread chasing dial toolbox with standard tools

Optional Accessories

  • Digital readout system (View Brochure)
  • 5C lever style collet closer
  • Royal spindle type live center
  • Live center set with interchangeable tips
  • BTC 3-jaw chuck with back plate
  • Transformer for 440V power
