Commonwealth Industrial / Kent USA KLS-1860V

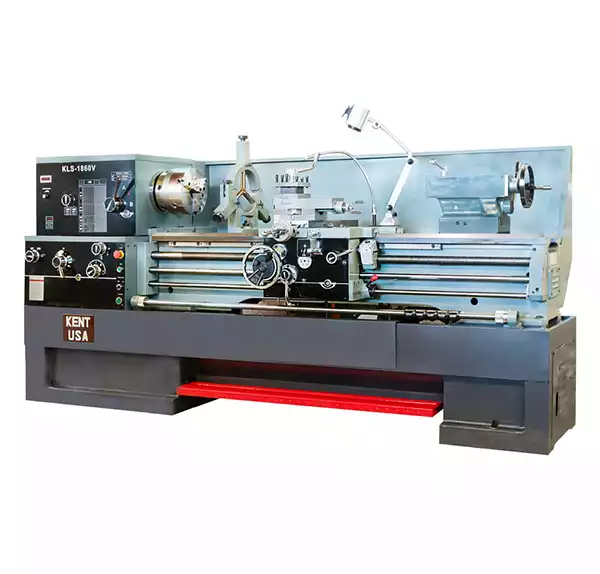

Kent USA KLS-1860V

  • 7.5 HP main spindle motor, 2 speed ranges with infinitely variable speed
  • D1-8 camlock, 3.1” spindle bore
  • Hardened and ground gears and bedways
  • Jog button, multi-position feed stops
  • Inch dials and leadscrews
  • Centralized lube system in headstock
  • Safety Foot brake
Swing Over Bed 18″
Swing Over Cross Slide 10.8″
Swing Over Gap 27.5″
Width of Bed 13″
Distance Between Centers 60″
Cross Slide Travel 11″
Top Slide Travel 4″
Spindle Speeds 12
Spindle Speed Range 200-2000 RPM
Through Hole Diameter 3.2″
Spindle Nose D1-8 Camlock
Spindle Bore Taper MT#7 w/ sleeve
Thread – Standard (Whit-worth) 61 (1-5/8 to 72) tpi
Thread – Metric Pitch 28 (0.5 to 20) mm
Longitudinal Feed 0.0015”-0.0913” in/rev
Cross Feed 0.0006”-0.0365” in/rev
Lead Screw Diameter 1.4″
Threading Pitch 4 TPI
Quill Travel 5″
Quill Diameter 3”
Quill Bore Taper MT#5
Main Motor 7.5 HP
Coolant Pump Motor 1/8 HP
Machine Dimension 112″ x 40″ x 50″
Packing Dimension 120″ x 45″ x 72″
Machine weight 5830 lbs
Packing weight 6380 lbs

Standard Accessories

  • 3-jaw chuck (10”), 4-jaw chuck (10”)
  • Face plate (16”),Steady rest (3.5”), Follow rest (1-3”)
  • 4-way tool post, thread chasing dial
  • Coolant system, Full length splash guard
  • Worklight, standard tools

Optional Accessories

  • DRO system (Acu-Rite, Newall, etc.) (View Brochure)
  • DRO installation charge
  • Aloris CA #4-set (tool post plus 6 bars)
  • 5C lever style collet closer
  • Royal spindle type live center (M.T. #5)
  • BTC 3-jaw chuck w/back plate (Zero-set, 10” D1-8)
  • BTC 3-jaw chuck w/back plate (Zero-set, 12” D1-8)
  • Taper turning attachment
  • Rustlick coolant (1 gallon, mixes 1:30)
