Commonwealth Industrial / Kent USA KLS-2280C

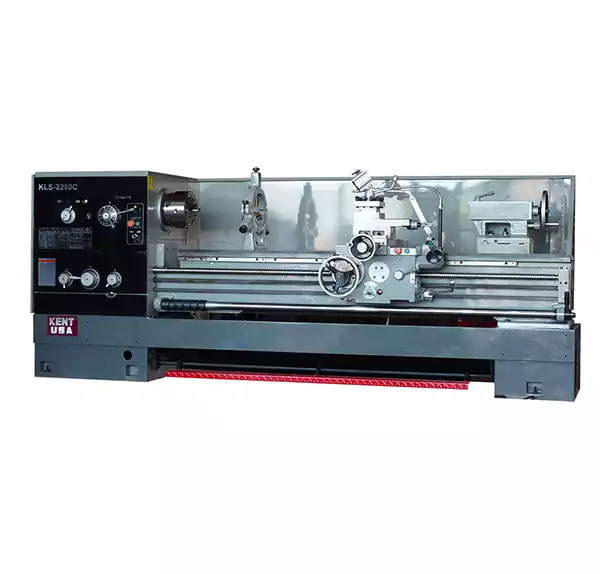

Kent USA KLS-2280C

  • 10 HP main spindle motor, 12 speeds
  • D1-8 camlock, 4.1” spindle bore
  • Hardened and ground gears and bedways
  • Jog button, 4-way rapid traverse
  • Mechanical clutch style headstock
  • Inch dials and leadscrews
  • Centralized lube system in headstock
  • Safety Foot brake
Swing Over Bed 22″
Swing Over Cross Slide 12.5″
Swing Over Gap 30″
Width of Bed 16″
Distance Between Centers 80″
Cross Slide Travel 10.2″
Top Slide Travel 5.75″
Spindle Speeds 12
Spindle Speed Range 36-1600 RPM
Through Hole Diameter 4.12″
Spindle Nose D1-8 Camlock
Spindle Bore Taper MT#6
Thread – Standard (Whit-worth) 32 (2–28) TPI
Thread – Metric Pitch 18 (1.25–14) mm
Longitudinal Feed 0.0024”-0.0992” in/rev
Cross Feed 0.0011”-0.042” in/rev
Lead Screw Diameter 1-9/16″
Threading Pitch 2 TPI
Quill Travel 6″
Quill Diameter 2.9″
Quill Bore Taper MT#5
Main Motor 10 HP (3-phase)
Coolant Pump Motor 1/8 HP (3-phase)
Machine Dimension 137″ x 45″ x 57″
Packing Dimension 143″ x 55″ x 84″
Machine weight 7260 lbs
Packing weight 7760 lbs

Standard Accessories

  • 3-jaw chuck
  • 4-jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Thread chasing dial toolbox with standard tools

Optional Accessories

  • Digital readout system (View Brochure)
  • 5C lever style collet closer
  • Royal spindle type live center
  • Live center set with interchangeable tips
  • BTC 3-jaw chuck with back plate
  • Transformer for 440V power
  • Rustlick lubricant
