Commonwealth Industrial / Kent USA KTM-3VK

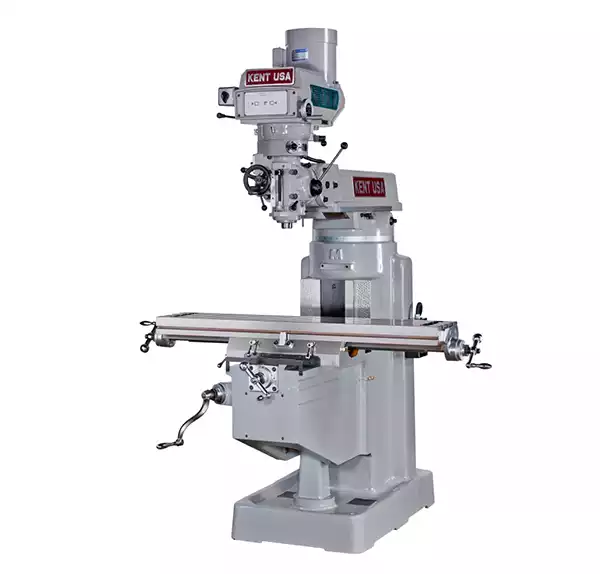

Kent USA KTM-3VK Manual Knee Mill

OUT OF STOCK

Kent USA KTM-3VK

3 HP spindle motor, variable speed milling head with AC-Frequency drive, digital RPM display, analog load meter, and automatic spindle direction reversal when switching between high & low speed ranges
9” x 49” hardened and ground table top
T-slots ground parallel to table ways
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Automatic lubrication, with metered check-valves

Download Kent USA Mill Brochure 2018 Brochure

Category: Manual Knee Mills

Table Size	10″ x 50″ (10″ x 54″ Optional)
Table Travel (X-Axis)	35″
Saddle Travel (Y-Axis)	15.25″
Knee Travel (Z-Axis)	15″
Quill Travel	5″
Ram Travel	22″
Spindle Motor	3 HP
Spindle Speed	60–500–4200 RPM
Spindle Taper	R-8
Quill Diameter	3.375″
Quill Feed Rate	0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual / Power)	0.75″ / 0.37″ diameter
Boring Capacity	6″ diameter
Milling Capacity	2.0 in³/min
Maximum Work Load (Center)	850 lbs
Spindle Center to Column	2.75″ – 17.75″
Net Weight	3000 lbs
Gross Weight	3100 lbs
Shipping Dimensions	76″ x 76″ x 88″ (skid)
Power Requirements	220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp)

Optional Accessories

Digital Readout System (View Brochure)
Table (X-Axis) Power Feed
Saddle (Y-Axis) Power Feed
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Pan
Riser Block
Angle-Lock Vise
Rustlick Coolant
Right angle milling attachment with arbor support
# 30 taper spindle option
Rotary table (12”, vertical and horizontal)
Clamping kit (52 pc)
R-8 collet set (11 pc/set, 1/8” to 3/4″)
Upgrade to 440V power
