Commonwealth Industrial / Kent USA KTM-4VKF-E

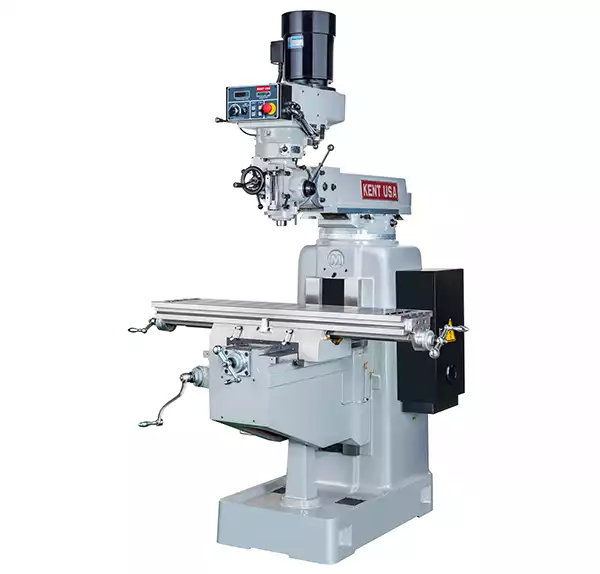

Kent USA KTM-4VKF-E Manual Knee Mill
OUT OF STOCK

Kent USA KTM-4VKF-E

  • 3 HP AC-Freq drive head with digital RPM display and analog load meter.  Automatic spindle direction reversal when switching between high and low speed gear ranges
  • 60-550-4500 spindle RPM (Hi/Low gear)
  • Automatic centralized lubrication system with metered check-valves
  • Single-phase or 3-phase power without the need for a phase converter
  • Hardened and Ground (Hrc-52) table surface and all slide ways
  • Solid box ways on saddle and column

Download Kent USA Mill Brochure 2018 Brochure

Category:
Table Size 12″ x 50″
Table Travel (X-Axis) 33″
Saddle Travel (Y-Axis) 18″
Knee Travel (Z-Axis) 18″
Quill Travel 5.5″
Ram Travel 22″
Spindle Motor 3 HP
Spindle Speed 50–550–4500 RPM (2-range, Hi/Lo)
Spindle Taper R-8
Quill Diameter 3.375″
Quill Feed Rate 0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual / Power) 0.75″ / 0.37″ diameter
Boring Capacity 6″ diameter
Milling Capacity 2.0 in³/min
Maximum Work Load (Center) 850 lbs
Spindle Center to Column 5″ – 27″
Net Weight 3400 lbs
Gross Weight 3600 lbs
Shipping Dimensions 72″ x 72″ (skid)
Power Requirements 220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp)

Optional Accessories

  • Digital Readout System (View Brochure)
  • Table (X-Axis) Power Feed
  • Saddle (Y-Axis) Power Feed
  • Knee (Z-Axis) Power Feed
  • Air Power Drawbar
  • Flood Coolant System
  • Chip Pan
  • Riser Block
  • Angle-Lock Vise
  • Rustlick Coolant
