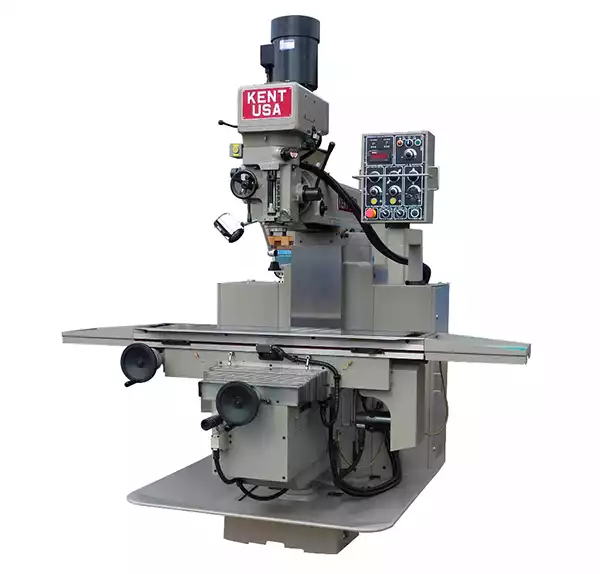

Kent USA KTM-5AVKF
- 13” x 59” hardened and ground table top
- Saddle and knee with hardened and ground square (box) ways
- Oversized precision ballscrews in X & Y axes, telescoping cover on front cross way
- X & Y axes driven by DC servo motor
- Precision bored and ground milling head, with super precision ABEC-7 bearing
- Meehanite® casting, with built in coolant reservoir in machine base
- Coolant system and chip tray
- Centralized automatic lubrication, with metered check-valves
Download Kent USA Mill Brochure 2018 Brochure
| Table Size |
13″ x 59″ |
| Table Travel (X-Axis) |
39.37″ |
| Saddle Travel (Y-Axis) |
20″ |
| Knee Travel (Z-Axis) |
20″ |
| Quill Travel |
5.5″ |
| Ram Travel |
21″ |
| Spindle Motor |
5 HP |
| Spindle Speed |
70-4500 RPM |
| Spindle Taper |
NMTB-40 |
| Quill Diameter |
4.173” |
| Quill Feed Rate |
0.0017” / 0.0032” / 0.0054” |
| Drilling Capacity (Manual / Power) |
ø 1.5” |
| Boring Capacity |
ø 8” |
| Milling Capacity |
3 cu. inch/min |
| Maximum Work Load (Center) |
1200 lbs |
| Spindle Center to Column |
5.31″ – 26.38″ |
| Net Weight |
6050 lbs |
| Gross Weight |
6300 lbs |
| Shipping Dimensions |
85″ x 80″ (skid) |
| Power Requirements |
220 volts, 3 phase, 60 Hz, 25 Amp (optional 440v, requires 12.5 Amp) |
Optional Accessories
- Quick change tooling package (Mach-1)
- Digital Readout System (View Brochure)
- NMTB-30 spindle
- Flood coolant system (Built-in base)
- Knee (Z-axis) power feed
- Air power drawbar
- Flood coolant system
- Chip tray
- 3-D edge finder
- Knee linear encoder feedback for coupled z-axis position
- AMI with programmable M-functions
