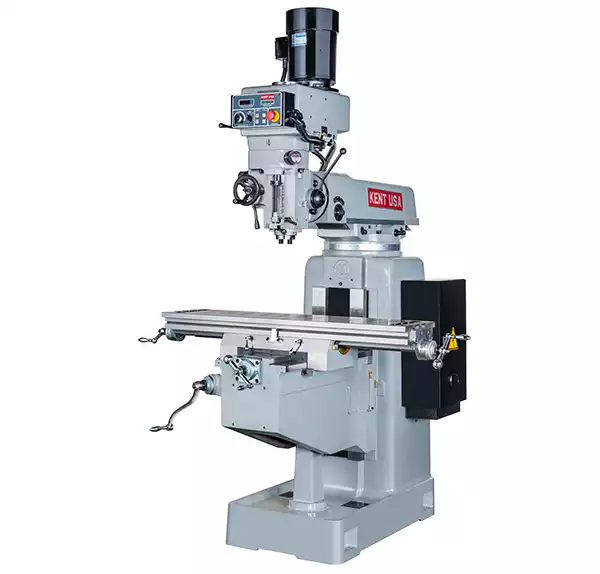

Kent USA KTM-5VKF-E
- 5 HP AC-Freq drive head with digital spindle RPM display and load meter
- 60-550-4500 spindle RPM (Hi/Low gear). Automatic spindle direction reversal when switching between high and low speed gear ranges
- NMTB-40 spindle taper
- Automatic centralized lubrication system with metered check-valves
- Single-phase or 3-phase power without the need for a phase converter
- Hardened and Ground (Hrc-52) table surface and all slide ways
- Solid box ways on saddle and column
Download Kent USA Mill Brochure 2018 Brochure
| Table Size |
12″ x 50″ |
| Table Travel (X-Axis) |
33″ |
| Saddle Travel (Y-Axis) |
18″ |
| Knee Travel (Z-Axis) |
18″ |
| Quill Travel |
5.5″ |
| Ram Travel |
26.75″ |
| Spindle Motor |
5 HP |
| Spindle Speed |
60–500–4200 RPM (standard variable speed model) |
| Spindle Taper |
NMTB-40 |
| Quill Diameter |
4.173″ |
| Quill Feed Rate |
0.0017″ / 0.0032″ / 0.0054″ in/rev |
| Drilling Capacity (Manual / Power) |
1.25″ / 0.625″ diameter |
| Boring Capacity |
8″ diameter |
| Milling Capacity |
2.5 in³/min |
| Maximum Work Load (Center) |
850 lbs |
| Spindle Center to Column |
5.25″ – 32″ |
| Net Weight |
3700 lbs |
| Gross Weight |
3800 lbs |
| Shipping Dimensions |
72″ x 72″ (skid) |
| Power Requirements |
220 volts, 3 phase, 60 Hz, 17 Amp (optional 440v, requires 8.5 Amp)Can run on single phase power |
Optional Accessories
- Quick change tooling package (Mach-1)
- Digital Readout System (View Brochure)
- NMTB-30 spindle
- Flood coolant system (Built-in base)
- Knee (Z-axis) power feed
- Air power drawbar
- Flood coolant system
- Chip tray
- 3-D edge finder
- Knee linear encoder feedback for coupled z-axis position
- AMI with programmable M-functions
