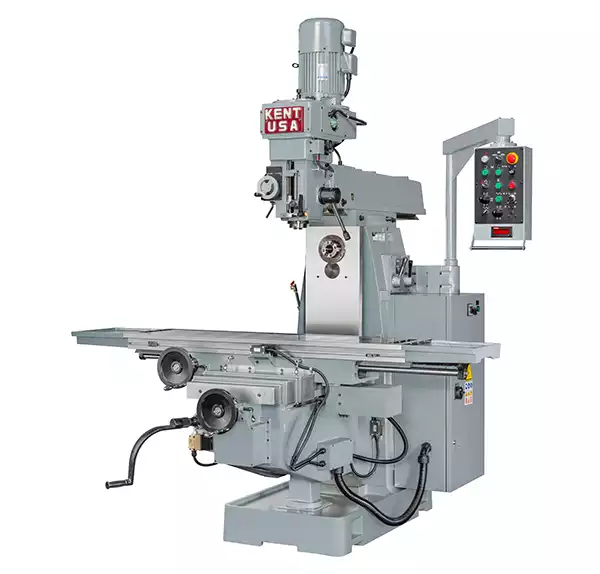

Kent USA KTM-VH500EVS
- Turret Type Inverter / Variable Speed Head
- 5 HP Horizontal Spindle Motor, 9-Speed Ranges. 5 H.P. Vertical Spindle Motor, 57.9″ x 14.6” Hardened & Gound Table Top
- Saddle and Knee with Hardened & Ground Square (box) Ways
- Precision Ballscrews in X & Y-Axes
- X & Y-Axes driven by AC Servo Motor
- Precision Bored & Ground Milling Head with super precision ABEC-7 Bearings
- Meehanite® casting, with a built-in Coolant Reservoir in the Machine Base
- Coolant System and Chip Tray
- Centralized Automatic Lubrication, with Metered Check-Valves
Download Kent USA KTM Combination Mills Brochure
| Table Size |
14.6″ x 57.9″ |
| Table Travel (X-Axis) |
44.4″ |
| Saddle Travel (Y-Axis) |
20.5″ |
| Knee Travel (Z-Axis) |
17.3″ |
| T-Slot
| 18 x 3 x 80 |
| Feed (Long) / min |
1.18″ ~ 118.11″ Variable |
| Feed (Cross) / min |
1.18″ ~ 118.11″ Variable |
| Vertical / min |
37.8″ (1.18″ ~ 45.3″ Variable Opt.) |
| Steps |
Inv. Variable |
| Spindle Speed RPM |
60~3600 |
| Swiveling Angle |
45° (R&L) |
| Quill Travel |
5.5″ |
| Quill Feeds / Rew |
0.0014″ / 0.0028″ / 0.0055″ |
| Spindle Nose to Table |
3.35″ ~ 19.88″ |
| Spindle Center to Column Face |
7.28″ ~ 30.9″ |
| Cross Travel of Ram |
23.6″ |
| H. Spindle Nose |
N.S.T. 40 |
| H. Spindle Speed RPM |
60 ~ 1440 |
| H. Steps |
9 |
| H. Spindle to Bottom of Ram |
6.89″ |
| H. Spindle Center to Table Top |
-0.31″ ~ 17″ |
| V. Spindle Motor |
5 HP / 4P Inv. |
| H. Spindle Motor |
5 HP / 4P |
| X, Y Axis Feed |
AC Servo 1 HP |
| Z Axis Feed |
1 HP / 12P (AC Servo 1.14HP Opt.) |
| Coolant Pump |
1/8 HP / 2P |
| Dimensions (L x W x H) |
81.5″ x 75″ x 102″ |
| Net Weight |
5842 lbs |
Standard Accessories
- Coolant System
- X, Y Axes Servo Motor
- X, Y Axes Ball Screw
- Vertical Head Auto Lubrication Pump
- Slideway Auto Lubrication Pump
Optional Accessories
- X-Axis Travel (44.4″)
- Z-Axis Servo Motor
