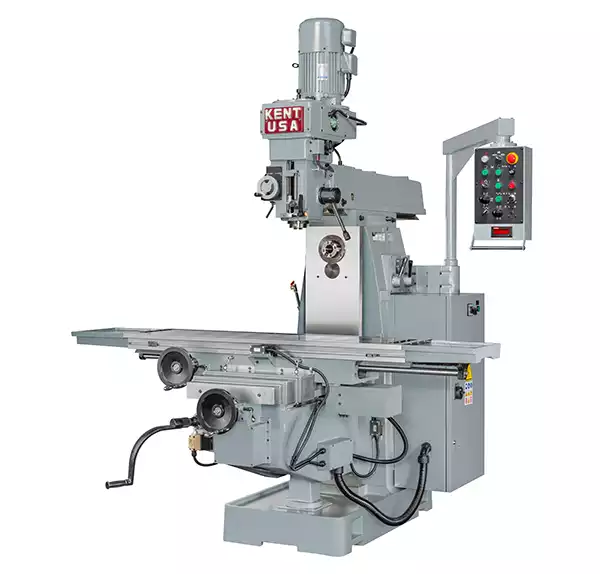

Kent USA KTM-VH600EVS
- Turret type inverter / variable speed head
- 5 HP horizontal spindle motor, 9 speed ranges. 5 H.P. vertical spindle motor, 50″ x 14.6” hardened and ground table top
- Saddle and knee with hardened and ground square (box) ways
- Precision ballscrews in X & Y axes
- X & Y axes driven by AC servo motor
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite® casting, with built-in coolant reservoir in machine base
- Coolant system and chip tray
- Centralized automatic lubrication, with metered check-valves
Download Combination Mills – KTM-EVS Brochure
| Table Size |
14.6″ x 57.9″ |
| Table Travel (X-Axis) |
44.4″ |
| Saddle Travel (Y-Axis) |
24″ |
| Knee Travel (Z-Axis) |
17.3″ |
| T-Slot |
18 x 3 x 80 |
| Feed (Long) / min |
1.18″ ~ 118.11″ Variable |
| Feed (Cross) / min |
1.18″ ~ 118.11″ Variable |
| Vertical / min |
37.8″ (1.18″ ~ 45.3″ Variable Opt.) |
| Steps |
Inv. Variable |
| Spindle Speed RPM |
60~3600 |
| Swiveling Angle |
45° (R&L) |
| Quill Travel |
5.51″ |
| Quill Feeds / Rew |
0.0014″ / 0.0028″ / 0.0055″ |
| Spindle Nose to Table |
3.86″ ~ 21.2″ |
| Spindle Center to Column Face |
7.28″ ~ 30.9″ |
| Cross Travel of Ram |
23.6″ |
| H. Spindle Nose |
N.S.T. 50 |
| H. Spindle Speed RPM |
60 ~ 1440 |
| H. Steps |
9 |
| H. Spindle to Bottom of Ram |
6.89″ |
| H. Spindle Center to Table Top |
-0.31″ ~ 17″ |
| V. Spindle Motor |
5 HP / 4P Inv. |
| H. Spindle Motor |
7.5 HP / 4P |
| X, Y Axis Feed |
AC Servo 1 HP |
| Z Axis Feed |
1 HP / 12P (AC Servo 1.14HP Opt.) |
| Coolant Pump |
1/8 HP / 2P |
| Dimensions (L x W x H) |
81.5″ x 81″ x 103″ |
| Net Weight |
5952 lbs |
Standard Accessories
- Coolant System
- X, Y Axes Servo Motor
- X, Y Axes Ball Screw
- Vertical Head Auto Lubrication Pump
- Slideway Auto Lubrication Pump
Optional Accessories
- X-Axis Travel (44.4″)
- Z-Axis Servo Motor
