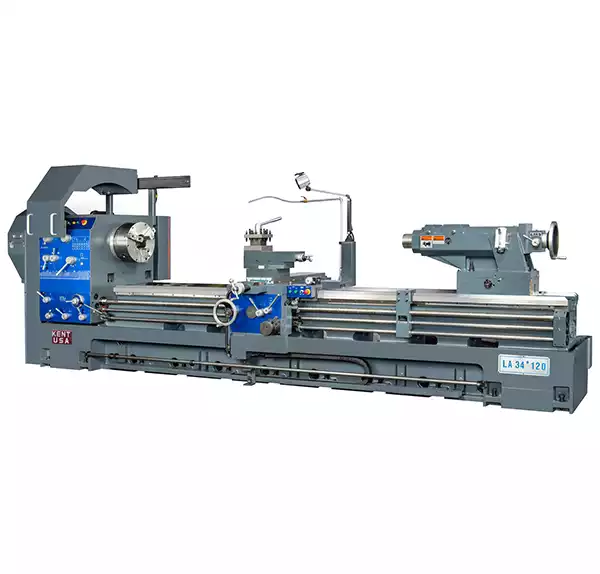

Kent USA LA-34 Series
- Rigid one piece headstock casting design
- Electromagnetic brake
- 18-step speeds for higher torque
- Auto-lubrication system
- Cross slide on ballscrews
- Laser inspected bed
- Single piece Meehanite bed casting
- Shafts and gears are hardened and ground to HRC 45±2
- Optional double chucks for longer workpieces
Download Kent USA Heavy Duty Lathes Brochure
| Swing Over Bed |
34″ |
| Swing Over Cross Slide |
24.4″ |
| Swing Over Gap |
46″ |
| Width of Bed |
20″ |
| Distance Between Centers |
60″ (Opt. 80″, 120″, 160″, 200″) |
| Cross Slide Travel |
11.02″ |
| Top Slide Travel |
12″ |
| Spindle Bore |
6″ (Opt. 9″, 12″) |
| Spindle Nose |
A2-11 (Opt. A2-15) |
| Spindle Speeds |
18 |
| Spindle Speed Range |
5 – 670 RPM (Opt. 4 – 500 RPM) |
| Through Hole Diameter |
6″ |
| Spindle Bore Taper |
MT#5 (Opt. MT#6) |
| Thread – Standard (Whit-worth) |
30 – 0.25 TPI |
| Thread – Metric Pitch |
1 – 120 mm |
| Longitudinal Feed |
0.0032 – 0.096 ipr |
| Cross Feed |
0.0016 – 0.048 ipr |
| Quill Travel |
5.9″ (Opt. 7.9″) |
| Quill Diameter |
4.9″ (Opt. 6.5″) |
| Main Motor |
20 HP (Opt. 30 HP) |
| Coolant Pump Motor |
1/8 HP |
| Packing Dimension |
127″ – 265″ x 43″ x 62″ |
|
13800 – 27000 lbs |
Standard Accessories
- 3-jaw chuck (15″)
- Steady rest
- Follow rest
- Thread chasing dial
- 4-position tool post
- 4-position carriage stop
- Coolant system with full-length splash guard
Optional Accessories
- Digital Readout System
- Aloris DA #5-SET (Tool post and 6 holders)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate (Zero-set, 15″ D1-11)
- Adaptor plate and rear 12″ 3 jaw chuck for back of spindle
- Face plate (20″ D1-11)
- Taper turning attachment
- Micrometer carriage stop
