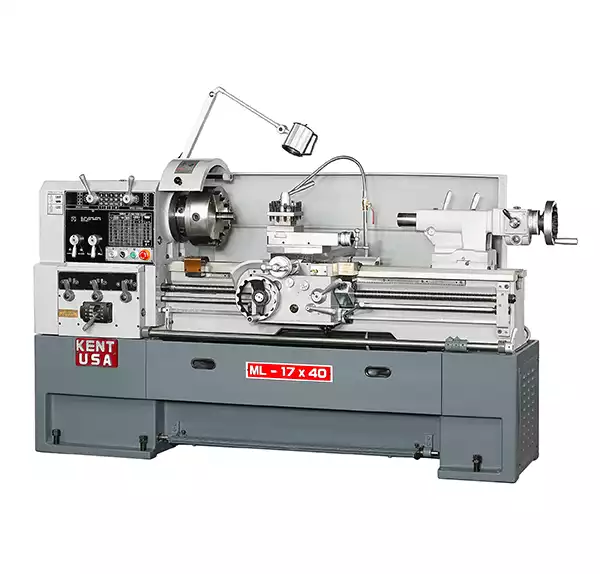

Kent USA ML/X-1740T
- 7.5 HP (10 HP on MLX model) Spindle Motor, 12-Speeds
- 3.125” Spindle Through Hole
- Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning
- Adjustable Over-load Feed Clutches
- Quick Reversal Feed from Apron
- Full-length Safety Foot Brake
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Carriage, and Bed Ways
- Multi-position Adjustable Feed Position Stops (ML Model Only)
- Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
- Dual Inch/Metric Dials with Quick-change Sleeve
Download Kent USA Precision Lathes Brochure
| Swing Over Bed |
17″ |
| Swing Over Cross Slide |
11″ |
| Swing Over Gap |
24.5″ |
| Width of Bed |
12″ |
| Distance Between Centers |
44″ |
| Cross Slide Travel |
12″ |
| Top Slide Travel |
4.75″ |
| Spindle Bore |
3.15″ |
| Spindle Speeds |
12 |
| Spindle Speed Range |
36-1800 RPM |
| Through Hole Diameter |
3.125″ |
| Spindle Nose |
D1-6 (D1-8 on MLX) |
| Spindle Bore Taper |
MT#7 – MT#4 |
| Thread – Standard (Whit-worth) |
45 (2-72) TPI |
| Thread – Metric Pitch |
39 (0.2-14) mm |
| Longitudinal Feed |
0.0015″–0.04″ in/rev |
| Cross Feed |
0.00075″–0.02″ in/rev |
| Lead Screw Diameter |
– |
| Threading Pitch |
– |
| Quill Travel |
5″ |
| Quill Diameter |
2.3″ |
| Quill Bore Taper |
MT#4 |
| Main Motor |
7.5 HP (10 HP on MLX) |
| Coolant Pump Motor |
1/8 HP |
| Machine Dimension |
89”x33”x58” |
| Packing Dimension |
95”x39”x63” |
| Machine weight |
3850 LBS |
| Packing weight |
4510 LBS |
Standard Accessories
- 3-jaw chuck
- Steady rest
- Follow rest
- Coolant system
- Full-length splash guard
- Worklight
- Chuck cover
- Thread chasing dial
- Toolbox with standard tools
- 3-position carriage stop
- Bed mount carriage stop
Optional Accessories
- 4-jaw chuck
- Digital Readout System (View Brochure)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate (Zero-set)
- Taper turning attachment
- Rustlick coolant
- Micro carriage stop
