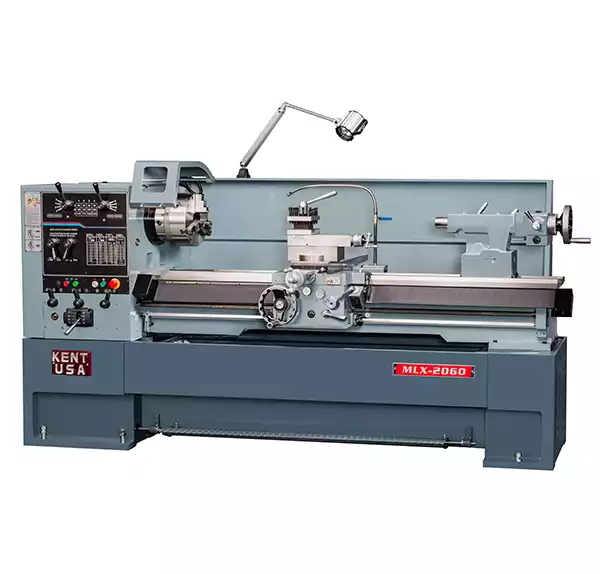

Kent USA MLX-2060T
- 3.125” Spindle Through Hole
- Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning
- Adjustable Over-load Feed Clutches
- Quick Reversal Feed from Apron
- Full-length Safety Foot Brake
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Carriage, and Bed Ways
- Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
- Dual Inch/Metric Dials with Quick-change Sleeve
Download Kent USA Precision Lathes Brochure
| Swing Over Bed |
20″ |
| Swing Over Cross Slide |
14″ |
| Swing Over Gap |
27.5″ |
| Width of Bed |
12″ |
| Distance Between Centers |
57″ |
| Cross Slide Travel |
12″ |
| Top Slide Travel |
4.75″ |
| Spindle Bore |
3.15″ |
| Spindle Speeds |
12 |
| Spindle Speed Range |
26-1500 RPM |
| Through Hole Diameter |
3.125″ |
| Spindle Nose |
D1-8 |
| Spindle Bore Taper |
MT#5 |
| Thread – Standard (Whit-worth) |
45 (2-72) TPI |
| Thread – Metric Pitch |
39 (0.2-14) mm |
| Longitudinal Feed |
0.0015″–0.04″ in/rev |
| Cross Feed |
0.00075″–0.02″ in/rev |
| Lead Screw Diameter |
– |
| Threading Pitch |
– |
| Quill Travel |
5″ |
| Quill Diameter |
2.3″ |
| Quill Bore Taper |
MT#4 |
| Main Motor |
10 HP |
| Coolant Pump Motor |
1/8 HP |
| Machine Dimension |
– |
| Packing Dimension |
115″ x 39″ x 63″ |
| Machine weight |
4560 LBS |
| Packing weight |
5450 LBS |
Standard Accessories
- 3-jaw chuck (10”)
- Chuck cover with interlock
- Steady rest & Follow rest
- Main leadscrew cover
- 4-position tool post
- Coolant system
- Full length splash guard
- Halogen work light
- Thread chasing dial
- 3 position carriage stop
- Bed mount carriage stop
- Electric cabinet interlock switch
Optional Accessories
- 4-jaw chuck
- Digital Readout System (View Brochure)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate (Zero-set)
- Taper turning attachment
- Rustlick coolant
- Micro carriage stop
