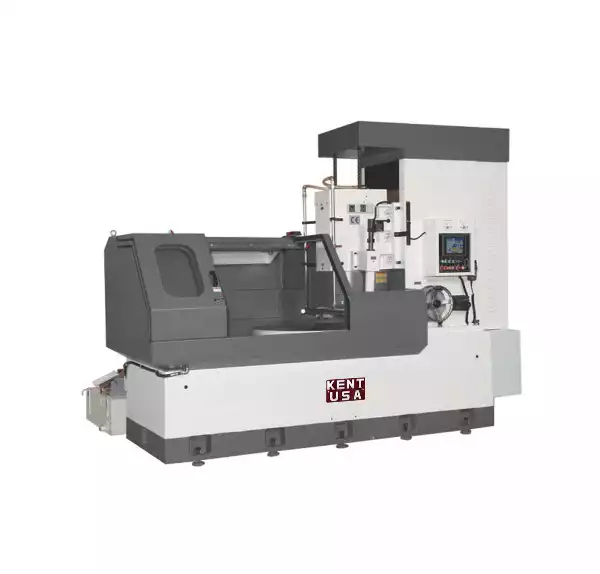

Kent USA RGV-1000A

Meehanite class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine
Spindle lateral design creates stability during heavy cutting.
Spindle motor: 50HP
Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding while maintaining high stiffness
Small work piece suction is accomplished by fine electrical magnetic chuck
AUTO DOWN FEED CONTROLLER BY COLOR TOUCH SCREEN MONITOR
Y-axis (vertical) Auto down feed and Z-axis (cross) feed by Mitsubishi servo motor

Rotary Magnetic Chuck Diameter	39.4”
Max Grinding Radius	–
Distance of Table Surface to Spindle Surface	11.8”
Rotary Magnetic Chuck Speed	5-18 RPM
Rotary Magnetic Chuck Horse Power	4.7 HP
Spindle Motor	50 HP
Spindle Speed	850 RPM
Auto Downfeed Power	1.34 HP
Vertical Downfeed Revolution	X1 X5 X10 (MPG) / 0.1, 0.5, 1mm
Vertical Downfeed Graduation	X1 X5 X10 (MPG) / 0.001, 0.005, 0.01mm
Wheel Size (Dia. X Width X Bore)	3.5” x 3.2” x 1.2″ x 6.3” (8 pcs)
Net Weigth	20,900 lbs
Gross Weight	22,660 lbs
Packing Size	40′ HQ Container
