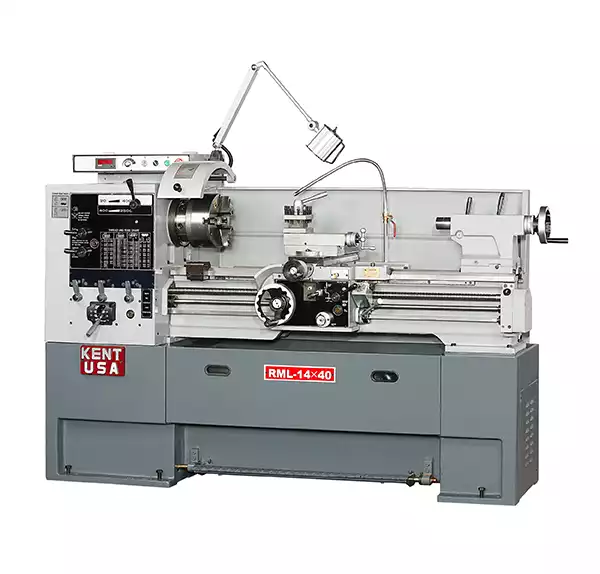

Kent USA RML-1440VT
- 5 HP main spindle motor using frequency drive and capable of running using single phase power
- Digital display 20–400-2500 infinitely variable spindle speeds
- Hardened and ground gears and bedways
- Cast iron machine bedways with full one piece cast base and front loading chip tray for easier cleaning
- Foot brake and T-Slot compound Inch/metric reading on dials
- Inch/metric ruler on tailstock quill
- ISO 9001 certified manufacturer
Download Kent USA Precision Lathes Brochure
| Swing Over Bed |
14-3/16″ |
| Swing Over Cross Slide |
8-3/8″ |
| Swing Over Gap |
21″ |
| Width of Bed |
10-1/4″ |
| Distance Between Centers |
40″ |
| Cross Slide Travel |
8-11/16″ |
| Top Slide Travel |
5-1/2″ |
| Spindle Bore |
2.1″ |
| Spindle Speeds |
2 |
| Spindle Speed Range |
20-400-2500 RPM |
| Through Hole Diameter |
2-1/16″ |
| Spindle Nose |
D1-6 Camlock |
| Spindle Bore Taper |
MT#6 |
| Thread – Standard (Whit-worth) |
45 (2-72) TPI |
| Thread – Metric Pitch |
39 (0.2-14) mm |
| Longitudinal Feed |
0.002″–0.067″ |
| Cross Feed |
0.001”-0.034” in/rev |
| Lead Screw Diameter |
1-1/8″ |
| Threading Pitch |
4 TPI |
| Quill Travel |
6.5″ |
| Quill Diameter |
2″ |
| Quill Bore Taper |
MT#4 |
| Main Motor |
5 HP |
| Coolant Pump Motor |
1/8 HP |
| Machine Dimension |
81″ x 36″ x 60″ |
| Packing Dimension |
87″ x 42″ x 66″ |
| Machine weight |
3190 LBS |
| Packing weight |
3630 LBS |
Standard Accessories
- 3-jaw chuck (9″)
- Steady rest
- Follow rest
- 4-position tool post
- Coolant system
- Full-length splash guard
- Worklight
- Chuck cover
- Thread chasing dial
- Toolbox with standard tools
Optional Accessories
- 4-jaw chuck (10″)
- Digital Readout System (View Brochure)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate
- Taper turning attachment
- Rustlick coolant
- Micro carriage stop
- Face plate (12″ D1-6)
- Transformer for 440V power (5 KVA)
