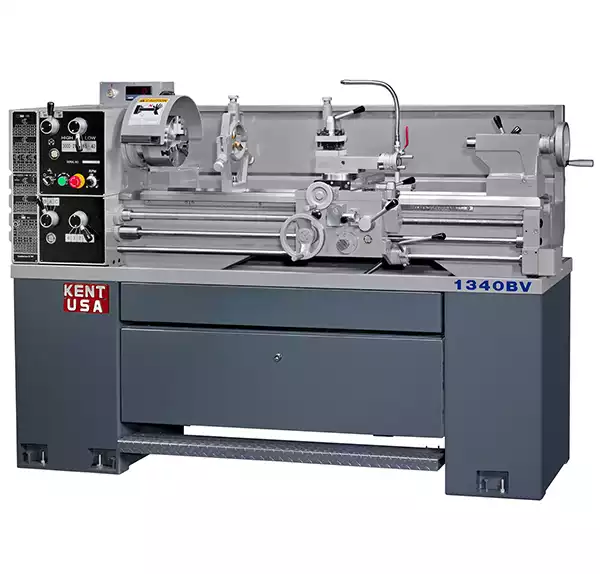

Kent USA SSM-1340BV
- 3 HP main spindle motor
- Infinitely variable spindle speeds with digital RPM display in Hi/Low gear speed ranges
- Capable of being run on single phase or 3 phase power
- Jog button for easy gear changes
- Hardened and ground gears and bedways
- Cast iron machine bedways
- Removable chip pan for easy clean up
- Foot brake and T-Slot compound
- Inch/metric ruler on tailstock quill
Download Kent USA SSM-1340BV Lathe Brochure
| 13″ |
| Swing Over Cross Slide |
8-1/4″ |
| Swing Over Gap |
18-1/2″ |
| Width of Bed |
7-1/2″ |
| Distance Between Centers |
40″ |
| Cross Slide Travel |
6-3/4″ |
| Top Slide Travel |
3-1/2″ |
| Spindle Bore |
1.5″ |
| Spindle Speeds |
2 |
| Spindle Speed Range |
40-365 & 218-2000 RPM |
| Through Hole Diameter |
1-9/16″ |
| Spindle Nose |
ASA D1-4 Camlock |
| Spindle Bore Taper |
MT#5 |
| Thread – Standard (Whit-worth) |
34 (2-56) TPI |
| Thread – Metric Pitch |
33 (0.5-12) mm |
| Longitudinal Feed |
0.0016″–0.046″ |
| Cross Feed |
0.0005”-0.015” |
| Lead Screw Diameter |
7/8″ |
| Threading Pitch |
8 TPI |
| Quill Travel |
4″ |
| Quill Diameter |
1-9/16″ |
| Quill Bore Taper |
MT#3 |
| Main Motor |
3 HP |
| Coolant Pump Motor |
1/8 HP |
| Machine Dimension |
74″ x 28″ x 54″ |
| Packing Dimension |
77″ x 30″ x 60″ |
| Machine weight |
1320 LBS |
| Packing weight |
1584 LBS |
Standard Accessories
- 3-jaw chuck (7″)
- 4-jaw chuck (8″)
- Steady rest
- Follow rest
- 4-position tool post
- Coolant system
- Full-length splash guard
- Worklight
- Chuck cover
- Thread chasing dial
Optional Accessories
- Digital Readout System (View Brochure)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate
- Taper turning attachment
- Rustlick coolant
