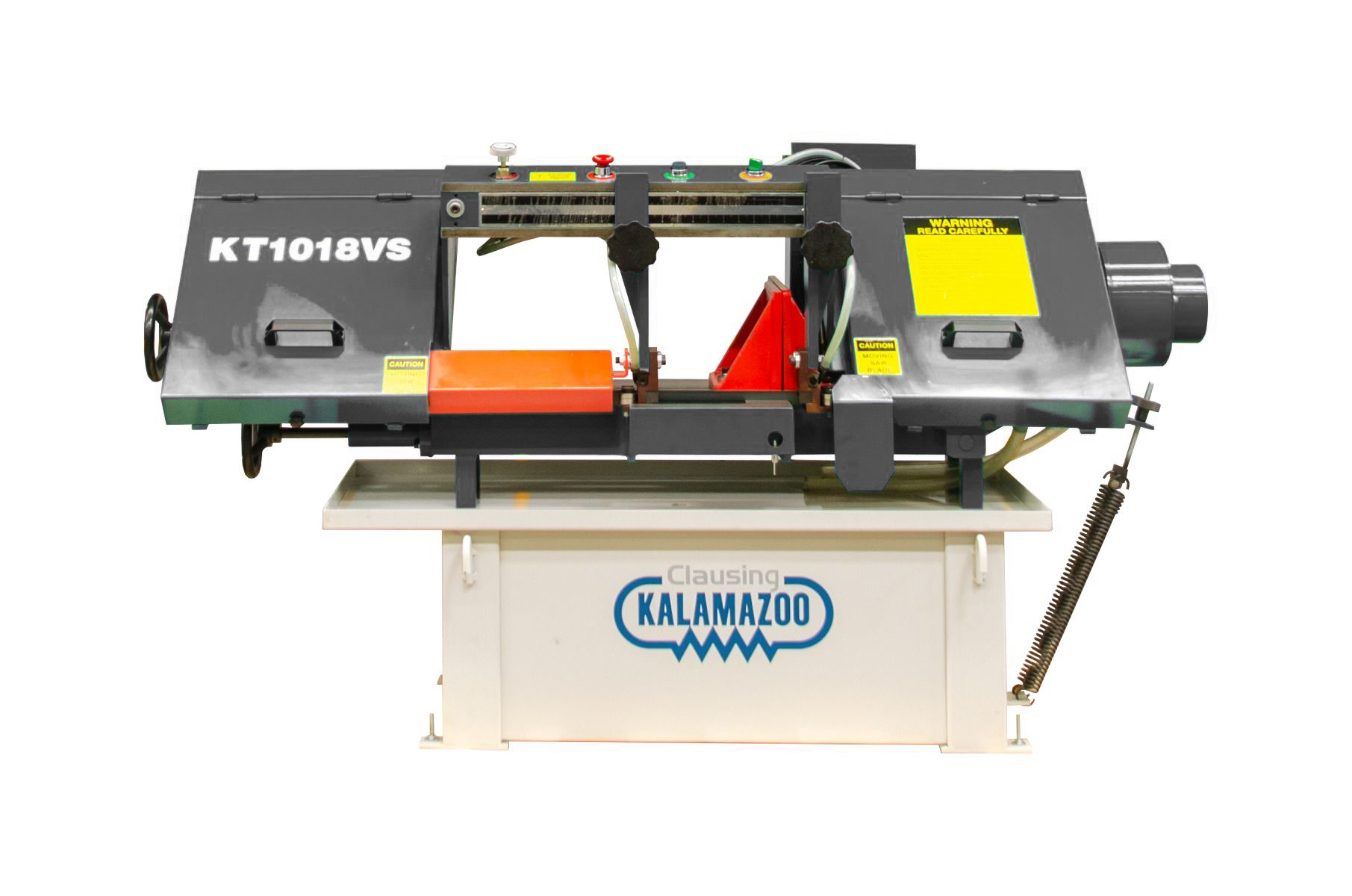

KT1018VS – Clausing Kalamazoo Manual Horizontal Bandsaw 10.0” x 16.0” / 18” x 6” Max Rectangular Capacity
Features and Benefits:
Manual Bandsaws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.
Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Manual |
| Drive Type | Variable Speed Drive |
| Blade Wheel Diameter | 15.4” flanged, cast iron |
| Blade | 1” x .035” x 11’-4-1/2” |
| Blade Speeds | 69–321 fpm |
| 90° Capacity – Round | 10” |
| 90° Capacity – Rectangular | 18” x 6” or 10” x 16” |
| 45° Capacity – Round | 8” |
| 45° Capacity – Rectangular | 8”x6” or 4”x9” or 3”x10” |
| Length | 74.8” |
| Width | 29.1” |
| Depth | 39.4” |
| Height (head-up) | 60.4” |
| Net Weight (W) | 685 lbs. |
| Shipping Weight (W) | 888 lbs. |
| Shipping Dimensions (LxWxH) | 80.3” x 35.4” x 45.3” |
Machine Features:
- Quick positioning 45º vise
- Cast iron bed
- Totally enclosed transmission
- Quick and simple speed change
- 1” wide blade
- Blade cleaning brush
- Solid carbide blade guides with rollers
- Recirculating coolant system with application through both guides
- Stock stop
- Easily adjusted head feed
- Head control is hydraulic cylinder operated by needle valve
- Two Year Limited Warranty
Clausing Kalamazoo Manual Horizontal Bandsaw — KT1018VS1: 2 Hp 110/220V 1ph; KT1018VS: 2 Hp 230/460V 3ph. Variable Speed 69–321 SFPM, 10” Round, 10” x 16” or 18” x 6” Rectangular. Available through Commonwealth Industrial—your Clausing sales and service partner.
