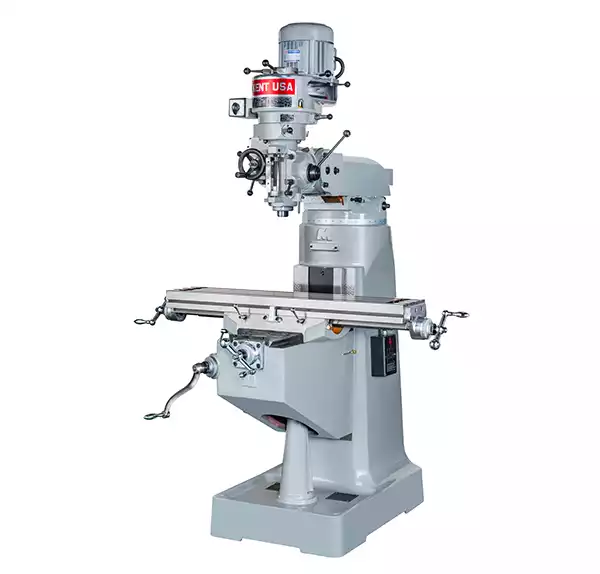

Kent USA KTM-3S
- 3 HP spindle motor, 16 speeds step pulley milling head
- 9” x 42” hardened and ground table
- Table, saddle, and knee with hardened and ground dovetail ways
- Precision ground leadscrews with backlash compensating double nut
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite® casting, with built in coolant reservoir in machine base
- Centralized one-shot lubrication, with metered check-valves
Download Kent USA Mill Brochure 2018 Brochure
| Table Size |
9″ x 42″ |
| Table Travel (X-Axis) |
28″ |
| Saddle Travel (Y-Axis) |
12″ |
| Knee Travel (Z-Axis) |
15″ |
| Quill Travel |
5″ |
| Ram Travel |
14.5″ |
| Spindle Motor |
3 HP |
| Spindle Speed |
60–500–4200 RPM (2 range) |
| Spindle Taper |
R-8 |
| Quill Diameter |
3.375″ |
| Quill Feed Rate |
0.0015″ / 0.003″ / 0.006″ in/rev |
| Drilling Capacity (Manual / Power) |
0.75″ / 0.37″ diameter |
| Boring Capacity |
6″ diameter |
| Milling Capacity |
2.0 in³/min |
| Maximum Work Load (Center) |
750 lbs |
| Spindle Center to Column |
5″ – 19.5″ |
| Net Weight |
2200 lbs |
| Gross Weight |
2300 lbs |
| Shipping Dimensions |
72″ x 72″ (skid) |
| Power Requirements |
220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp) |
Optional Accessories
- Digital Readout System (View Brochure)
- Table (X-Axis) Power Feed
- Saddele (Y-Axis) Power Feed
- Knee (Z-Axis) Power Feed
- Air Power Drawbar
- Flood Coolant System
- Chip Tray
- Right Angle Milling Attachment w/ Arbor Support
- Rustlick Coolant (1 Gal., Mixes 1:30)
- Riser Blocks (4″/6″/8″)
- Angle-lock Vises (6″/8″)
- Rotary Table
- Clamping Kit (52pc)
- R-8 Collet Set
- Single Phase Motor Option
- NMTB-30 Spindle
