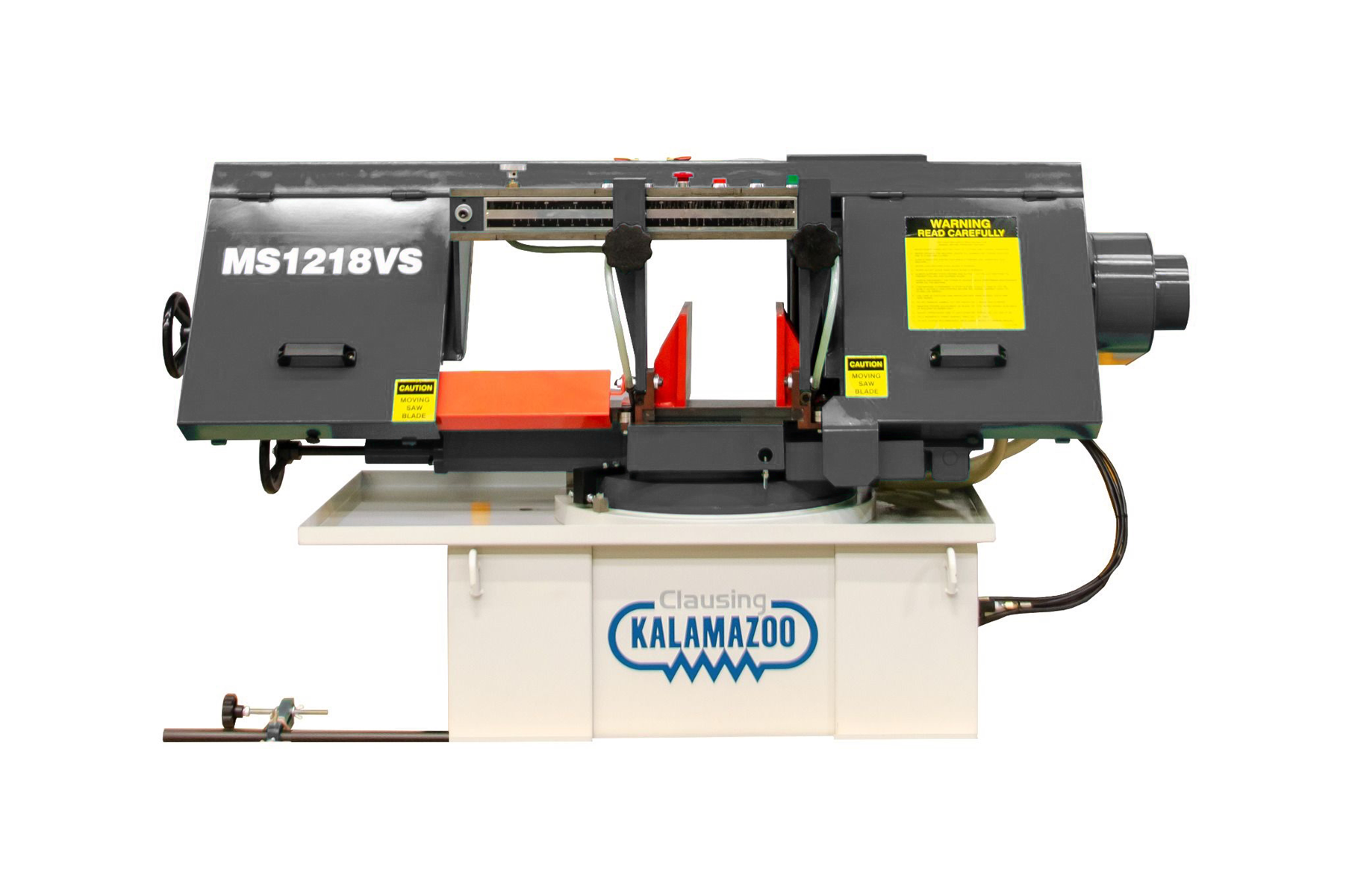

MS1218VS – Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw 10” x 16” Max Rectangular Capacity
Features and Benefits:
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is made.
Variable drive speed will adjust the speed of the pulleys with a button or knob. Two Hp main drive with magnetic starter and overload protection. Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Variable Speed Drive |
| Maximum Capacity Round (inch) | 12 |
| Maximum Capacity Rectangle (inch) | 10 x 16 |
| Voltage | 230/460 |
| Phase | 3 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (inch) | 8 x 12 |
| Blade Size | 1” x .035” x 136.5” |
| Blade Speeds (SFPM) | 80 – 360 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 2 |
Machine Features:
- Two (2) Hp main drive with magnetic starter and overload protection
- 0°-45° Miter head cutting; angle cuts without swinging material
- Re-circulating coolant system with application through both guides
- Swiveling saw head and bed allows angle cutting without moving the stock (vise jaw angle adjusted)
- Solid carbide blade guides with rollers
- Variable blade speed drive
- Automatic shut-off at end of cut
- Integrated coolant system
- Cast iron bed
- Totally enclosed transmission
- Blade cleaning brush
- 2 Year limited warranty
Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw 10” x 16” Max Rectangular Capacity, 12” Round Capacity, Variable Speed Sheave Pulley Drive, SFPM 80 to 360 Blade Speed, 2 Hp drive motor, 230/460 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
