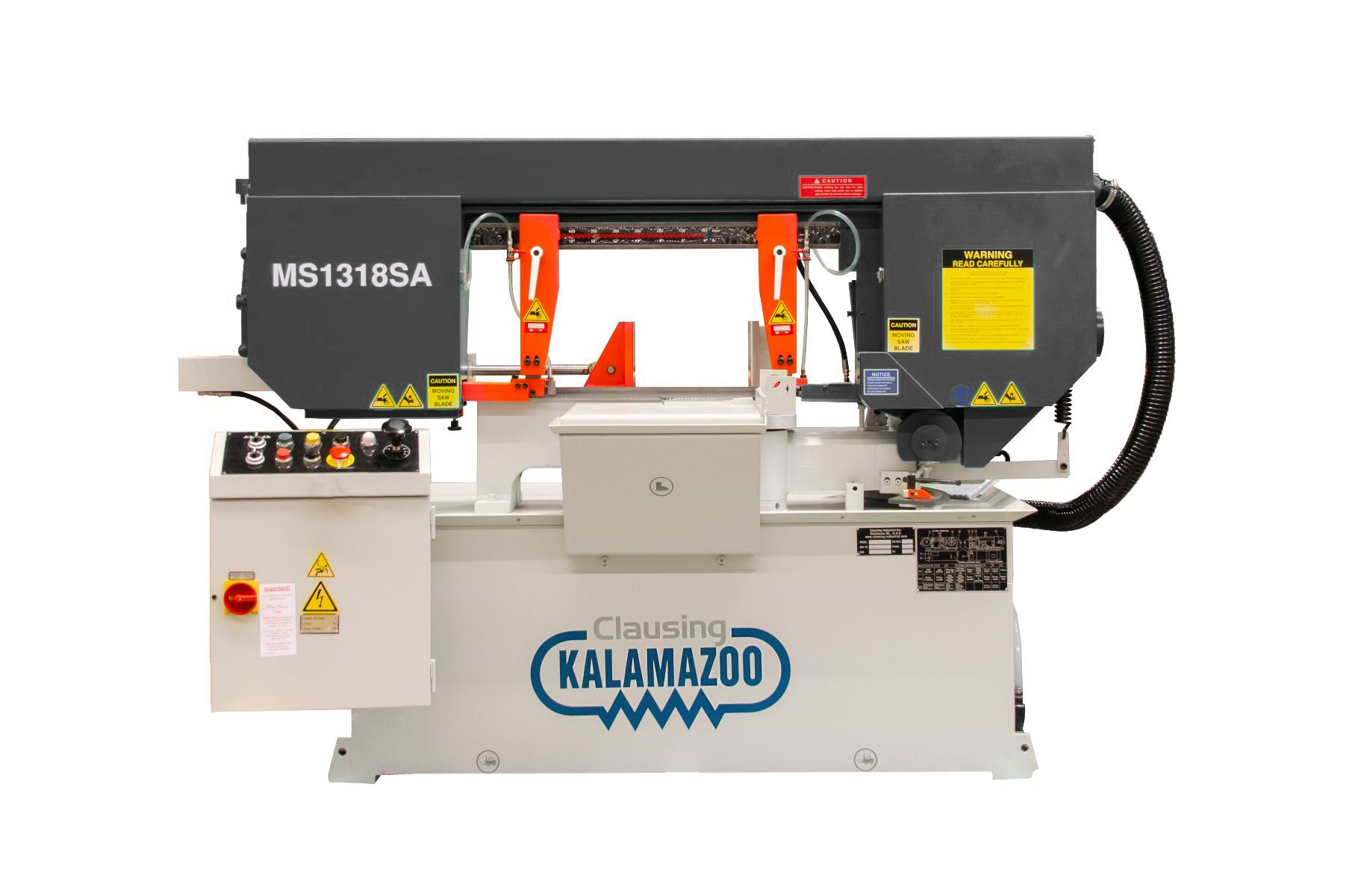

MS1318SA – Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw 18.5” x 10.6” Max Rectangular Capacity
Features and Benefits:
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is made.
Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter this changes the drive motor RPM. Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Variable Speed Pulley/Inverter |
| Maximum Capacity Round (inch) | 13 |
| Maximum Capacity Rectangle (inch) | 11 x 17.3 |
| Voltage | 230/460 |
| Phase | 3 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees Round (inch) | 11.8 x 11.8 |
| Blade Size | 1” x .035” x 163” |
| Blade Speeds (SFPM) | 98 – 328 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 3 |
Machine Features:
- 3 Hp drive motor with magnetic starter & overload protection
- Advanced hydraulic system for clamping & head rise
- Swivel saw head allows accurate angle cuts 0º to 60º
- Full stroke machine vise
- Pivoting operator panel
- Carbide blade guides
- Variable blade speed by inverter
- Powered chip brush
- Integrated coolant system
- Cast iron moveable guide arms
- Flushing hose
- Adjustable work stop
- 2 Year limited warranty
Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw 11” x 17.3” Max Rectangular Capacity, 13” Round Capacity, Variable Sheave Pulley Drive, SFPM 98 to 328 Blade Speed, 3 Hp drive motor, 230/460 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
