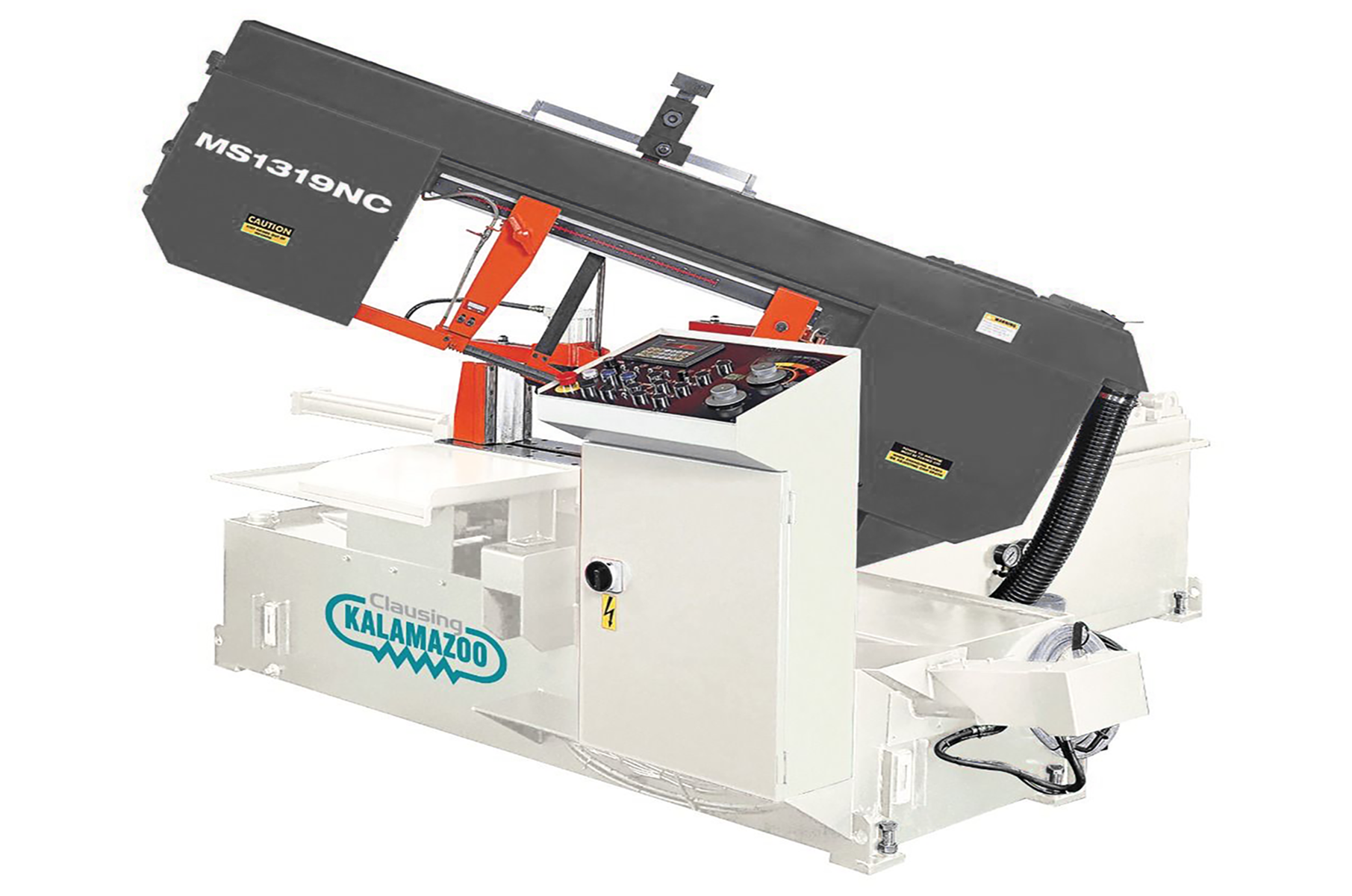

MS1319NC – Clausing Kalamazoo Automatic Horizontal Miter Bandsaw 11” x 19.68” Max Rectangular Capacity
Features and Benefits:
Automatic Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts.
A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs. Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Automatic |
| Drive Type | Variable Inverter Drive |
| Maximum Capacity Round (inch) | 13 |
| Maximum Capacity Rectangle (inch) | 11 x 19.68 |
| Voltage | 230 |
| Phase | 3 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (inch) | 10.43 x 10.43 |
| Blade Size | 1.25” x .042” x 193” |
| Blade Speeds (SFPM) | 66 – 330 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 5 |
Machine Features:
- Swivel mitering saw head allows 90° to 45° cutting
- Precision pivot system for accurate angle adjustment
- Infinitely variable speed by inverter
- Smart NC-100 programmable up to 100 jobs
- Carbide guides with roller bearings
- Auto shutoff after preset cuts or out-of-stock
- 5.7” HMI touch screen with diagnostics
- Integrated coolant system
- Automatic kerf loss compensation & multiple indexing
- Discharge table with coolant return
- Flushing hose
- Hydraulic front and rear vises
- 2 Year limited warranty
Clausing Kalamazoo Automatic Horizontal Miter Bandsaw 11” x 19.68” Max Rectangular Capacity, 13” Round Capacity, Smart 100 PLC will program up to 100 jobs, Variable Inverter Drive, SFPM 66 to 330 Blade Speed, 5 Hp drive motor, 230 or 460 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
