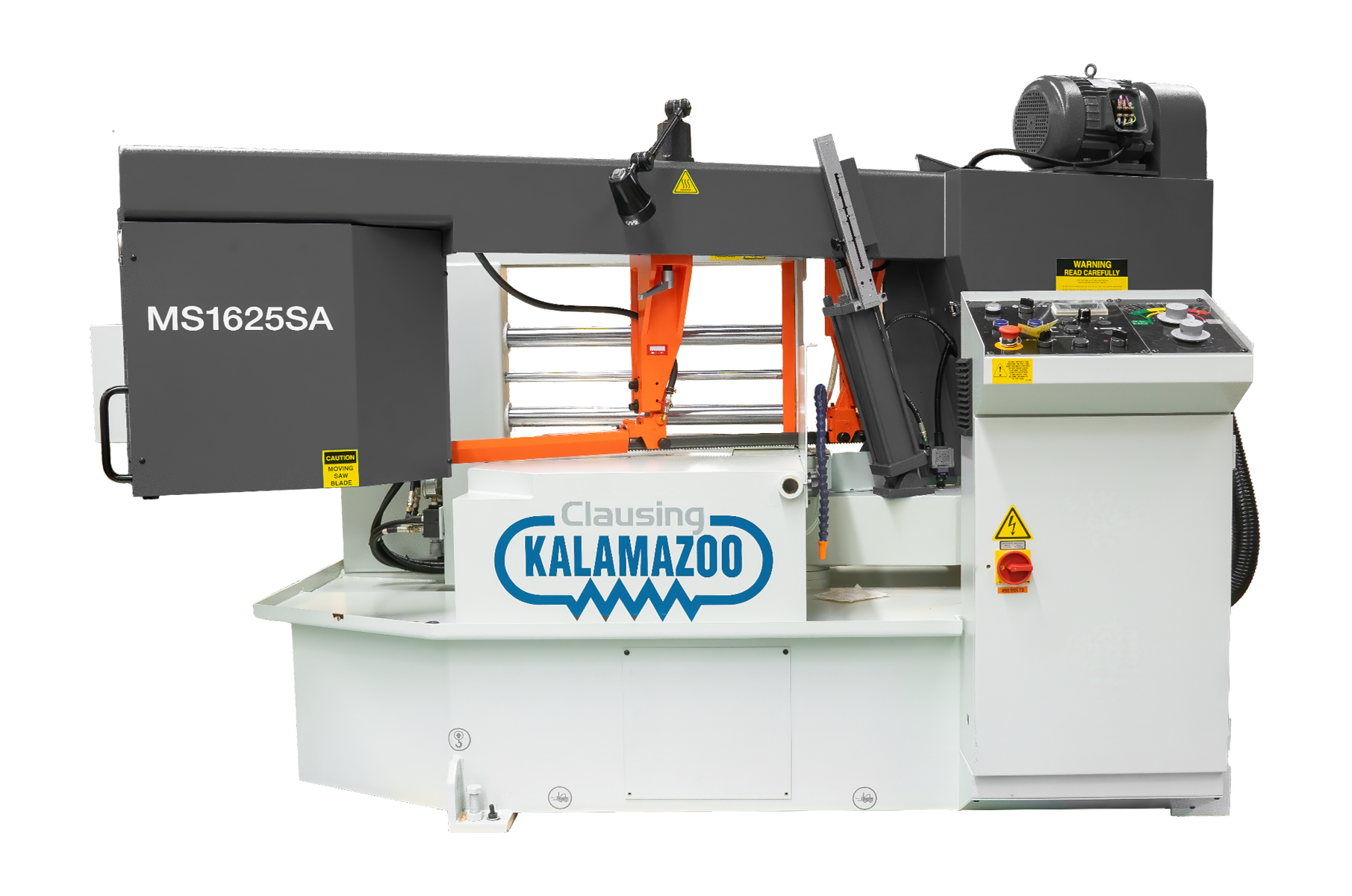

MS1625SA – Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw, Twin Column Head Support, 15” x 26.6” Max Rectangular Capacity
Features and Benefits:
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is finished.
Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter changes the drive motor RPM. Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi-Automatic |
| Drive Type | Variable Inverter Drive |
| Maximum Capacity Round (inch) | 16 |
| Maximum Capacity Rectangle (inch) | 15 x 26.6 |
| Voltage | 230 |
| Phase | 3 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (inch) | 16 x 16 |
| Blade Size | 1.25” x .042” x 209” |
| Blade Speeds (SFPM) | 66 – 328 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 5 |
Machine Features:
- Semi-automatic twin column design with rigid head support
- Integrated coolant system
- Carbide blade guides
- Variable speed inverter drive
- 2 Year limited warranty
Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw, Twin Column Head Support, 15” x 26.6” Max Rectangular Capacity, 16” Round Capacity, Variable Inverter Drive, SFPM 66 to 328 Blade Speed, 5 Hp drive motor, 230 or 460 Volts 3 Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
