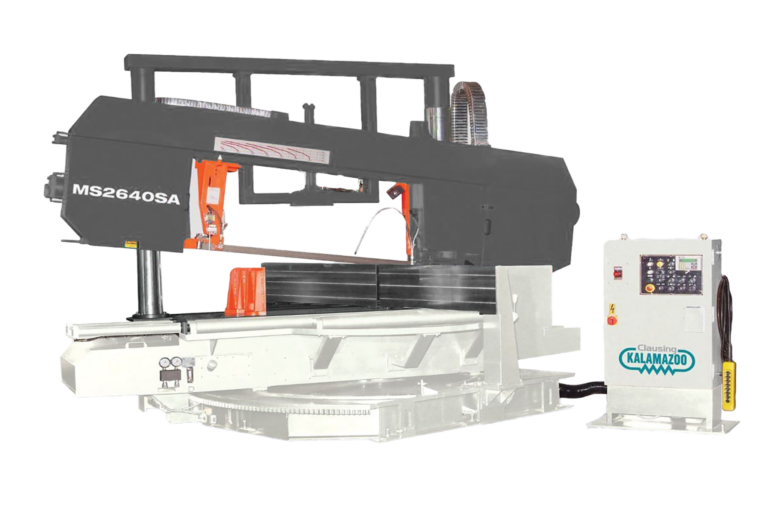

MSD2640SA – Clausing Kalamazoo Semi-Automatic Horizontal Double Miter Bandsaw, Twin Column Head Support, 20.5” x 40” Max Rectangular Capacity
Features and Benefits:
Semi‑Automatic inverter‑controlled infinitely variable blade speed with precision pivot system for accurate angle cuts.
Rigid frame with twin columns and large‑bore hydraulic cylinders. Distributed by Commonwealth Industrial.
Specifications:
| Machine Style | Semi‑Automatic |
| Drive Type | Variable Inverter Drive |
| Maximum Capacity Round (inch) | 26 |
| Maximum Capacity Rectangle (inch) | 20.5 x 40 |
| Voltage | 230 |
| Phase | 3 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (inch) | 20.5 x 24.4 |
| Blade Size | 2” x .063” x 326.8” |
| Blade Speeds (SFPM) | 49 – 295 |
| Blade Guide Type | Carbide |
| Motor Horsepower | 7.5 |
Machine Features:
- Mitering saw head from 90° to 60°
- Precision feed pressure & feed rate dual valve system
- Inverter‑controlled infinitely variable speed
- 7.5° blade cant for longer blade life
- Heavy‑duty frame supported by two large‑bore hydraulic cylinders
- Cross‑link connecting the two columns for structural strength
- 45° forward/backward swivel with automatic angle lock‑in
- Integrated coolant system
- Specially designed gearbox for smooth, powerful cutting
- Heavy‑duty inverter blade drive
- Hydraulically operated carbide blade guides
- Light projection for precise length measurement
- Blade slip/breakage sensing via proximity switch
- 2‑Year limited warranty
Clausing Kalamazoo Semi‑Automatic Horizontal Double Miter Bandsaw, Twin Column Head Support, 20.5” x 40” Max Rectangular Capacity, 26” Round Capacity, Variable Inverter Drive, SFPM 49–295 Blade Speed, 7.5 Hp, 230/460V 3‑Phase. Available through Commonwealth Industrial—your Clausing sales and service partner.
