Sinker EDM Series (Large Format) – Electrical Discharge Machining Centers (EDM)
| Model | Machine Table | Travel (X/Y/Z) |
|---|---|---|
| EDM 314 | 45.3” (1,150 mm) x 33.5 (850 mm) | 35.4” (900 mm) / 27.6” (700 mm) / 17.7” (450 mm) |
| EDM 316 | 68.9” (1,750 mm) x 53.1” (1,350 mm) | 59.1” (1,500 mm) / 46.5” (1,180 mm) / 31.5” (800 mm) |
| EDM 316 XXL | 98.4” (2,500 mm) x 53.1” (1,350 mm) | 78.7” (2,000 mm) / 46.5” (1,180 mm) / 31.5” (800 mm) |

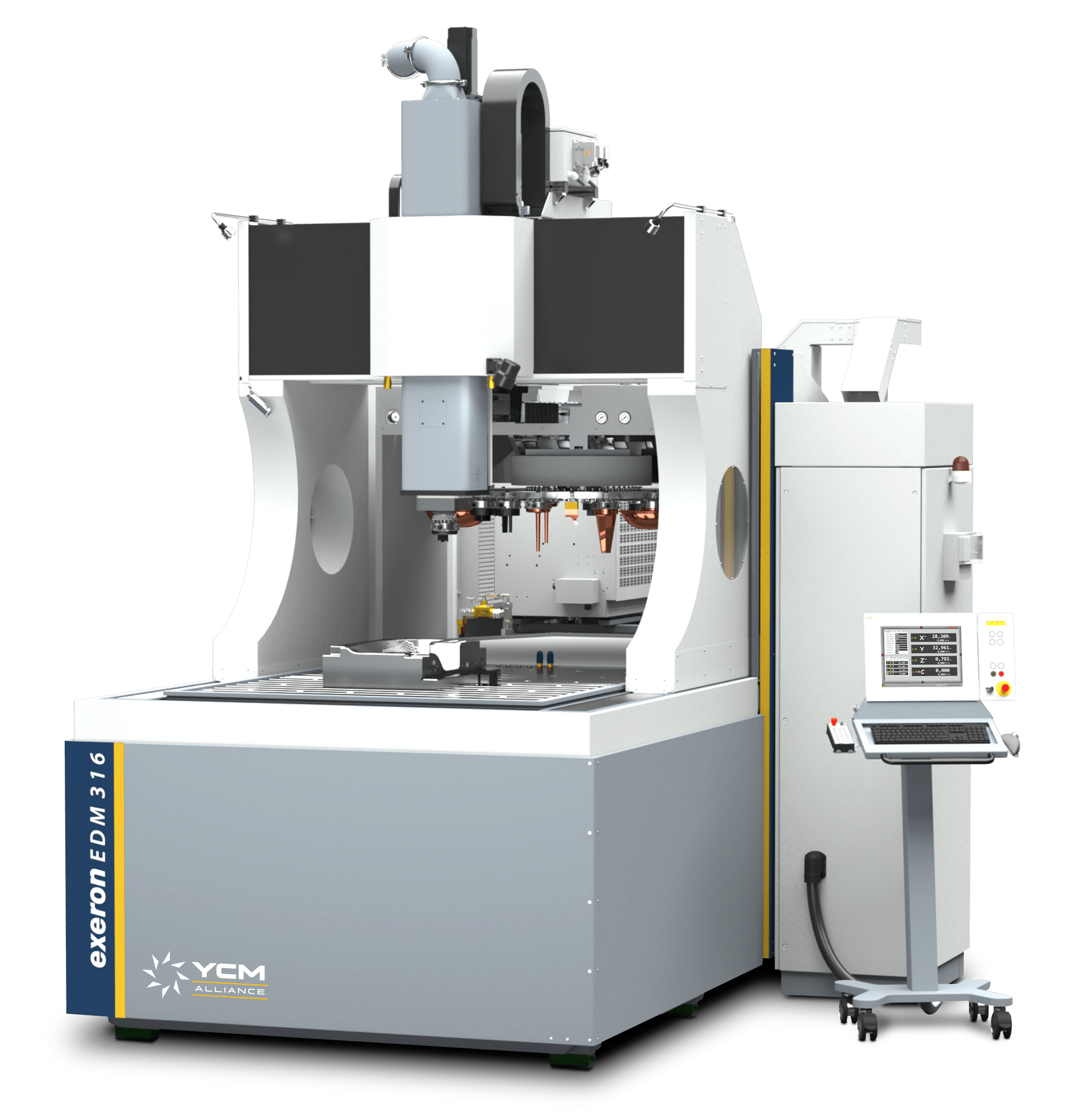

The large format series of Exeron EDM machining centers rely on a gantry design to handle larger applications. Despite their size, the large format machines are extremely ergonomic, with a tank that can be moved while filled. The large format series includes some of the biggest machining envelopes in their class, giving them the flexibility to handle a greater range of part sizes.
