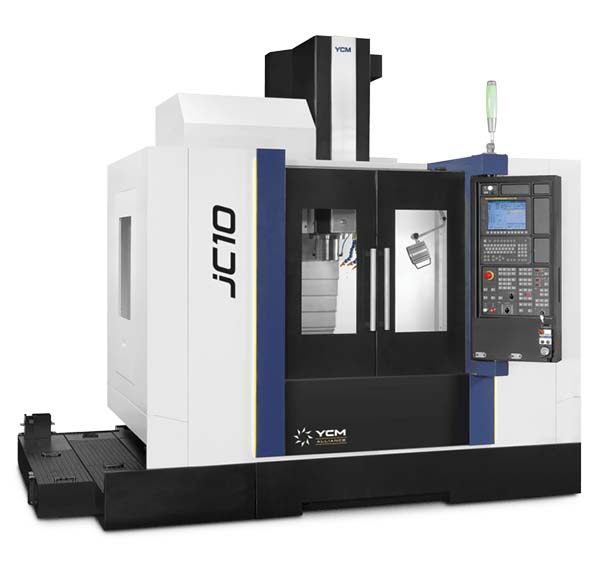

YCM jC Series

The jC Series high-performance vertical machining centers deliver top-end quality and excellent value. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability. The jC Series produces consistent high-quality results from the first part to the last.

Description

Description

Model	Spindle Speed	Spindle Speed
jC6	12,000 rpm / 15,000 rpm (optional)	23.6” (600 mm) / 16.1” (410 mm) / 17.7” (450 mm)
jC10E	10,000 rpm	40.1” (1,020 mm) / 20.4” (520 mm) / 21.2” (540 mm)
jC10	12,000 rpm / 15,000 rpm (optional)	40.1” (1,020 mm) / 20.4” (520 mm) / 21.2” (540 mm)
jC12	12,000 rpm / 15,000 rpm (optional)	50” (1,270 mm) / 25.9” (660 mm) / 24.4” (620mm)
jC13	12,000 rpm / 15,000 rpm (optional)	52.4” (1,330 mm) / 30” (762 mm) / 27.55” (700 mm)
jC16 – 40 Taper	12,000 rpm / 15,000 rpm (optional)	64.17” (1,630 mm) / 30” (762 mm) / 27.55” (700 mm)
jC16 -50 Taper	6,000 rpm / 10,000 rpm (optional)	64.17” (1,630 mm) / 33.9” (860 mm) / 30” (762 mm)

Contact Us

Products

YCM jC Series

Description

Related products

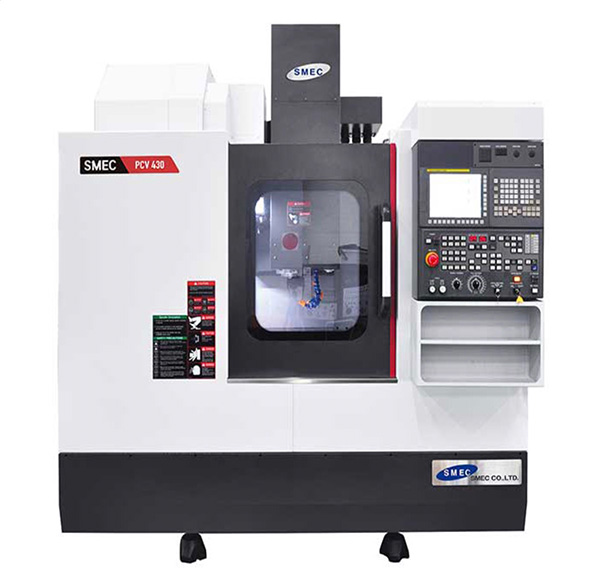

SMEC PCV 430 (10K) DIRECT w/CC
