Commonwealth Industrial / Kent USA KLS-1340A

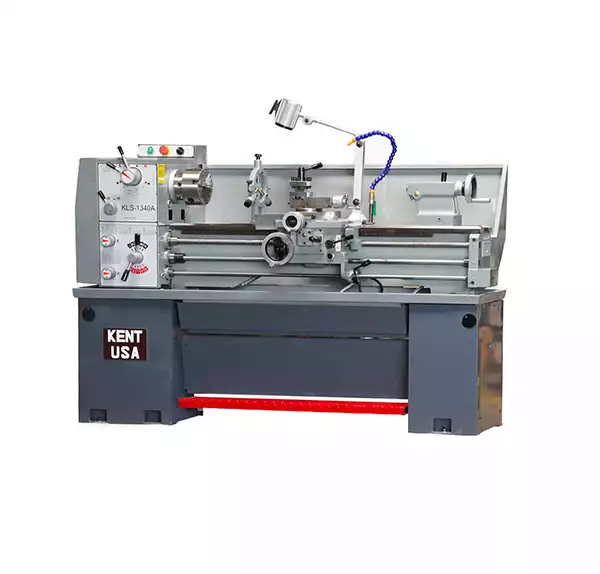

Kent USA KLS-1340A

  • 2 HP main spindle motor
  • 8 speeds, all geared headstock
  • Jog button for easy gear changes
  • Hardened and ground gears and bedways
  • Foot brake and T-Slot compound
  • Inch/metric reading on dials
  • Inch/metric ruler on tailstock quill
  • ISO 9001 certified manufacturer

Download Kent USA KLS Lathe Brochure

Swing Over Bed 13″
Swing Over Cross Slide 7-1/4″
Swing Over Gap 18-3/4″
Width of Bed 7-3/8″
Distance Between Centers 40″
Cross Slide Travel 6-1/2″
Top Slide Travel 3″
Spindle Speeds 8
Spindle Speed Range 70-2000 RPM
Through Hole Diameter 1-1/2″
Spindle Nose D1-4 Camlock
Spindle Bore Taper MT#5
Thread – Standard (Whit-worth) 32 (4–56) TPI
Thread – Metric Pitch 32 (0.4–7) mm
Longitudinal Feed 0.0032”-0.1067” in/rev
Cross Feed 0.00086”-0.0367” in/rev
Lead Screw Diameter 7/8″
Threading Pitch 8 TPI
Quill Travel 3-5/8″
Quill Diameter 1-1/2″
Quill Bore Taper MT#3
Main Motor 2 HP (110V or 220V, 1-phase)
Coolant Pump Motor 1/8 HP
Machine Dimension 76″ x 29″ x 47″
Packing Dimension 80″ x 35″ x 61″
Machine weight 1100 LBS
Packing weight 1310 LBS

Standard Accessories

  • 3-jaw chuck
  • 4-jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Thread chasing dial toolbox with standard tools

Optional Accessories

  • Digital readout system (View Brochure)
  • 5C lever style collet closer
  • Royal spindle type live center
  • Live center set with interchangeable tips
  • BTC 3-jaw chuck with back plate
  • Transformer for 440V power
  • Rustlick lubricant
